VSC8244 - Quad 10/100/1000BASE-T PHY

Vitesse

VSC8244 Datasheet Preview — Preview of VSC8244 PDF

Datasheet Details

Part number	VSC8244
Manufacturer	Vitesse
File Size	1.67 MB
Description	Quad 10/100/1000BASE-T PHY
Datasheet	VSC8244_Vitesse.pdf

VSC8244 Product details

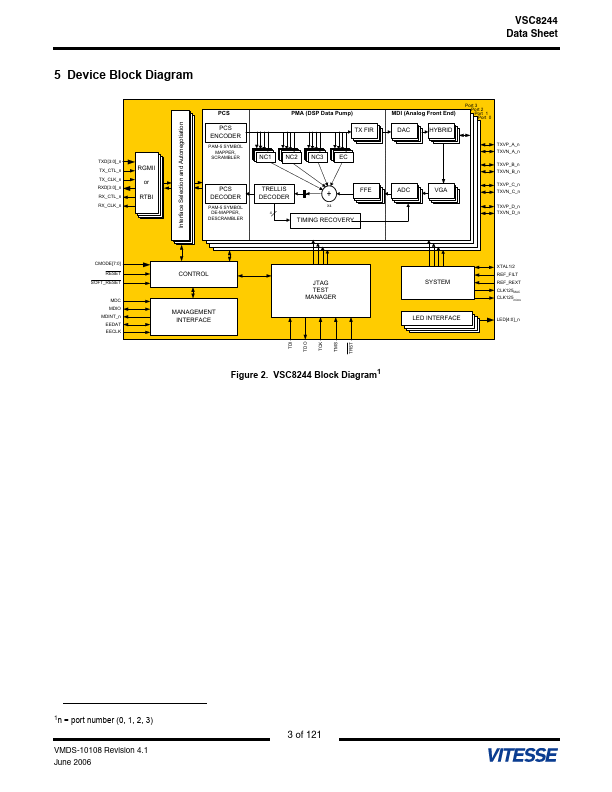

Description

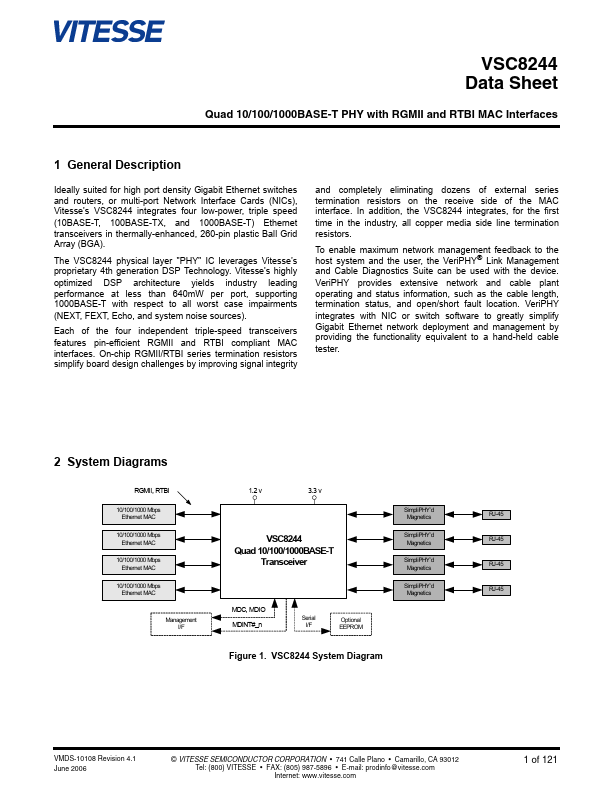

Ideally suited for high port density Gigabit Ethernet switches and routers, or multi-port Network Interface Cards (NICs), Vitesse's VSC8244 integrates four low-power, triple speed (10BASE-T, 100BASE-TX, and 1000BASE-T) Ethernet transceivers in thermally-enhanced, 260-pin plastic Ball Grid Array (BGA).

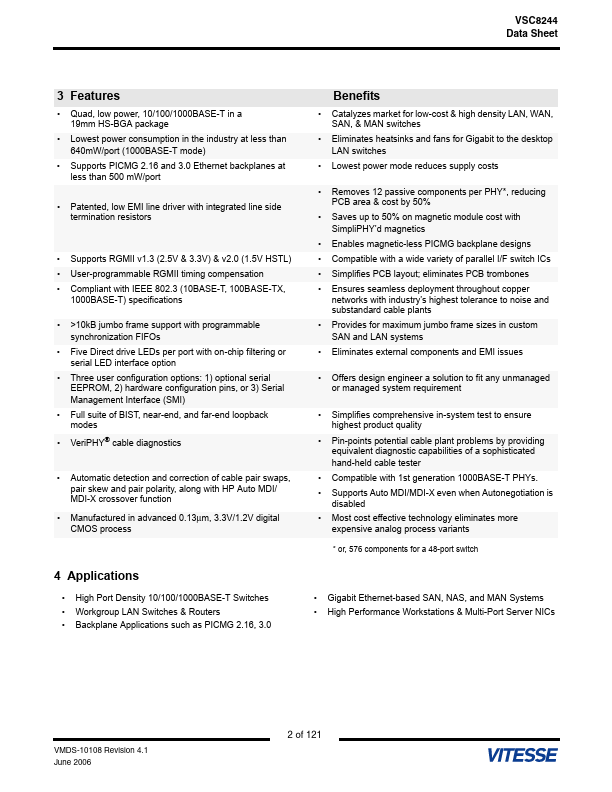

Features

pin-efficient RGMII and RTBI compliant MAC interfaces. On-chip RGMII/RTBI series termination resistors simplify board design challenges by improving signal integrity and completely eliminating dozens of external series termination resistors on the receive side of the MAC interface. In addition, the VSC8244 integrates, for the first time in the industry, all copper media side line termination resistors. To enable maximum network management feedback to the host system and the user, the VeriPHY® L.
