VP2128 - Synchronous-Rectified Buck Converter

VP2128 Description

VP2128 2A, 18V, Synchronous-Rectified Buck Converter .
The VP2128 is an efficiency and low-cost buck converter with integrated low RDS(ON) high-side 150mΩ and low-side 130mΩ MOSFET Features 4.

VP2128 Features

* 4.5V to 18V Input Voltage Range Adjustable Output from 0.922V to 16V 2A Output Current Integrated 150mΩ/130mΩ MOSFET Switches 0.922V Voltage Reference with 2% Accuracy 93% Conversion Efficiency at 5V/1A Output Adapted Current Mode PWM Operation Fixed 340kHz Switching Frequency such as programmable t

📥 Download Datasheet

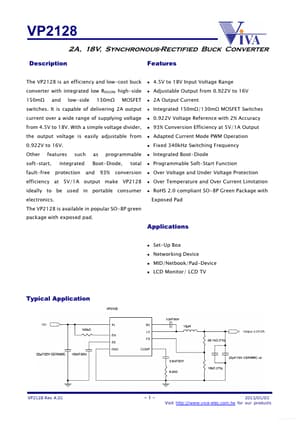

Preview of VP2128 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VP2128
Manufacturer
Viva Electronics
File Size
690.95 KB
Datasheet
VP2128-VivaElectronics.pdf
Description
Synchronous-Rectified Buck Converter
