VP213 Dual 90MHz 6-Bit Analog to Digital Converter

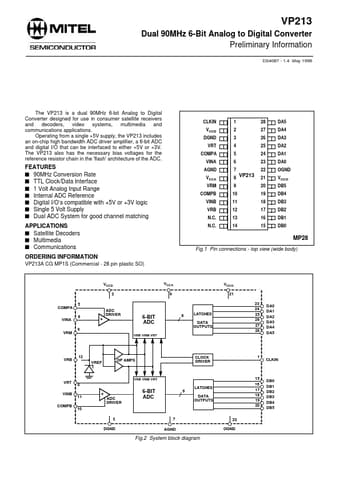

VP213 Dual 90MHz 6-Bit Analog to Digital Converter Preliminary Information DS4067 - 1.4 May 1996 The VP213 is a dual 90MHz 6-bit Analog to Digital Converter designed for use in consumer satellite receivers and decoders, video systems, multimedia and communications applications. Operating from a single +5V supply, the VP213 includes an on-chip high bandwidth ADC driver ampliﬁer, a 6-bit ADC and digital I/O that can be interfaced to either +5V or +3V. The VP213 also has the necessary bias voltage.

VP213 Features

* s 90MHz Conversion Rate s TTL Clock/Data Interface s 1 Volt Analog Input Range s Internal ADC Reference s Digital I/O’s compatible with +5V or +3V logic s Single 5 Volt Supply s Dual ADC System for good channel matching APPLICATIONS s Satellite Decoders s Multimedia s Communications ORDERING INFORMA
