WP40210KPA - N-Channel Power MOSFET

WP40210KPA Datasheet Preview — Preview of WP40210KPA PDF

Datasheet Details

Part number	WP40210KPA
Manufacturer	WANSEMI
File Size	1.06 MB
Description	N-Channel Power MOSFET
Datasheet	WP40210KPA-WANSEMI.pdf

WP40210KPA Product details

Description

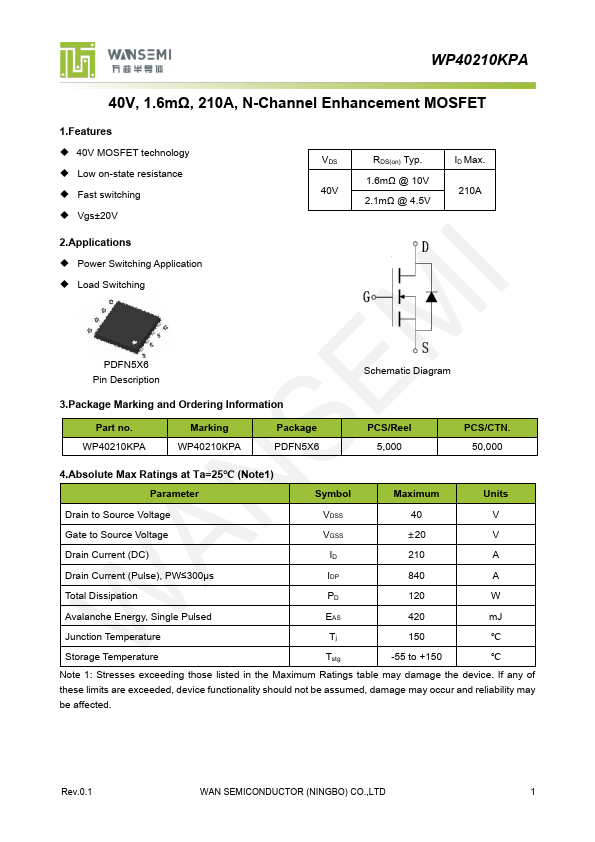

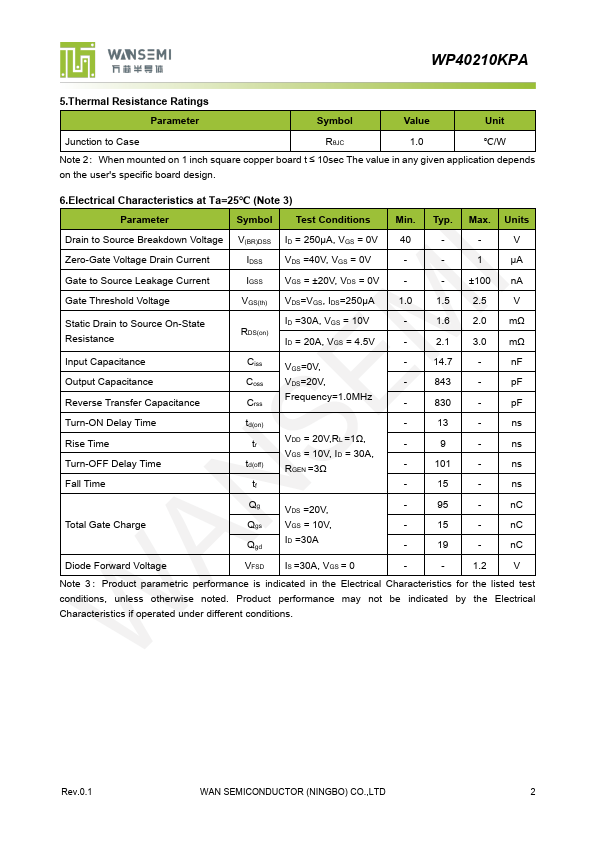

Schematic Diagram 3.Package Marking and Ordering Information Part no.WP40210KPA Marking WP40210KPA Package PDFN5X6 PCS/Reel 5,000 PCS/CTN.50,000 4.Absolute Max Ratings at Ta=25℃ (Note1) Parameter Symbol Maximum Units Drain to Source Voltage VDSS 40 V Gate to Source Voltage VGSS ±20 V Drain Current (DC) ID 210 A Drain Current (Pulse), PW≤300μs IDP 840 A Total Dissipation PD 120 W Avalanche Energy, Single Pulsed EAS 420 mJ Junction Temperature Tj 150 ℃ St

Features

40V MOSFET technology.
Low on-state resistance.
Fast switching.
Vgs±20V VDS RDS(on) Typ. ID Max. 1.6mΩ @ 10V 40V 210A 2.1mΩ @ 4.5V 2.
