WP4090KA - N-Channel Power MOSFET

WP4090KA Datasheet Preview — Preview of WP4090KA PDF

Datasheet Details

Part number	WP4090KA
Manufacturer	WANSEMI
File Size	909.64 KB
Description	N-Channel Power MOSFET
Datasheet	WP4090KA-WANSEMI.pdf

WP4090KA Product details

Description

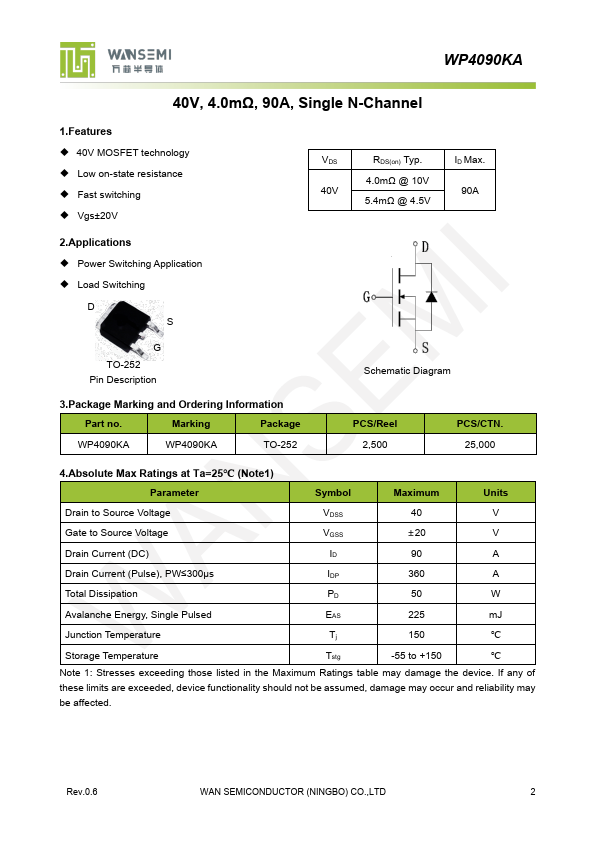

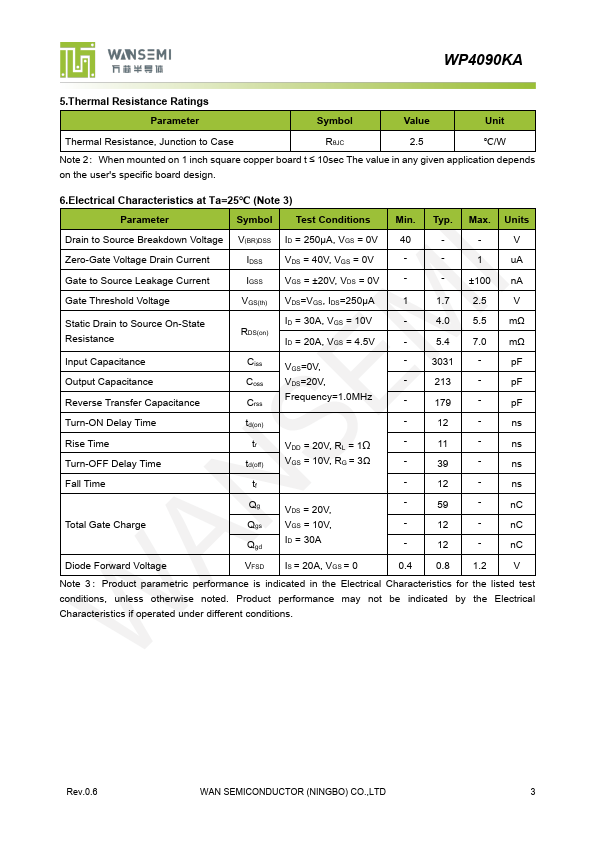

3.Package Marking and Ordering Information Part no.Marking Package WP4090KA WP4090KA TO-252 Schematic Diagram PCS/Reel 2,500 PCS/CTN.25,000 4.Absolute Max Ratings at Ta=25℃ (Note1) Parameter Symbol Maximum Units Drain to Source Voltage VDSS 40 V Gate to Source Voltage VGSS ±20 V Drain Current (DC) ID 90 A Drain Current (Pulse), PW≤300μs IDP 360 A Total Dissipation PD 50 W Avalanche Energy, Single Pulsed EAS 225 mJ Junction Temperature Tj 150 ℃ Storag

Features

40V MOSFET technology.
Low on-state resistance.
Fast switching.
Vgs±20V VDS RDS(on) Typ. ID Max. 4.0mΩ @ 10V 40V 90A 5.4mΩ @ 4.5V 2.
