PTC10K-CH Chassis Mount Temperature Controllers

ELECTRICAL SPECIFICATIONS SAFETY INFORMATION OPERATING INSTRUCTIONS ADDITIONAL TECH NOTES TROUBLESHOOTING CABLE SPECIFICATIONS MECHANICAL SPECIFICATIONS CERTIFICATION AND WARRANTY PAGE 2 3 4 5 6 14 17 19 20 21 ORDERING INFORMATION PART NO PTC2.5K-CH PTC5K-CH PTC10K-CH PTC10K-SL WCB105 WCB106 WCB.

PTC10K-CH Features

* Drive up to ±2.5, ±5.0, or ±10.0 A of linear bipolar TEC or heater current

* Add a booster unit to drive up to ±20.0 A

* Single supply operation: 5 to 30 VDC

* Small package: 3.0” x 3.2” x 1.1”

* Use a wide variety of temperature sensors

* Remote Out

PTC2.5K-CH-WAVELEnGTH.pdf

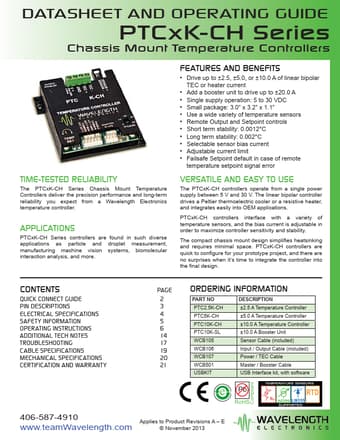

PTC10K-CH Datasheet Preview — This datasheet PDF includes multiple part numbers: PTC10K-CH, PTC2.5K-CH. Please refer to the document for exact specifications by model.
