CST816S

High performance self-capacitance touch controller

CST816S Features

* extremely high sensitivity while very low standby power consumption. 2. Chip Characteristics

* Built-in fast self-capacitance detection circuit and high-performance DSP module

* Support online programming;

* Built-in watchdog;

* Multiple buttons support;

* Support standby gesture

CST816S General Description

Name S1~S13 VDDA CMOD0 CMOD1/S14 IRQ SCL/SDA RST Description Sensing channels Power supply Stabilizing capacitor Stabilizing capacitor/Multiplexed sensing channels Interrupt output I2C Reset input Remarks 2.7V~3.6V, connect 2.2uF~ 10uF capacitor Connect 1nF~5.6nF stabilizing capacitor Connect 1nF.

CST816S Datasheet (839.10 KB)

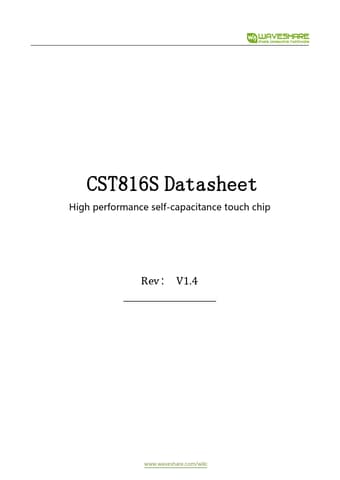

Preview of CST816S PDF

Datasheet Details

Part number:

CST816S

Manufacturer:

WAVESHARE

File Size:

839.10 KB

Description:

High performance self-capacitance touch controller.
CST816S Datasheet High performance self-capacitance touch chip Rev: V1.4 www.waveshare.com/wiki 1. Overview CST816S self-capacitance touch chip, usin.
