WS7.0P4SMA - Power Transient Voltage Suppressor

WAYON

📥 Download Datasheet

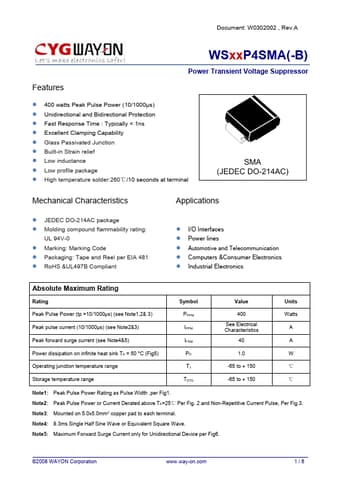

WS7.0P4SMA Datasheet Preview — Preview of WS7.0P4SMA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WS7.0P4SMA
Manufacturer	WAYON
File Size	710.96 KB
Description	Power Transient Voltage Suppressor
Datasheet	WS7.0P4SMA-WAYON.pdf

WS7.0P4SMA Product details

Features

WSxxP4SMA(-B) Power Transient Voltage Suppressor.
400 watts Peak Pulse Power (10/1000μs).
Unidirectional and Bidirectional Protection.
Fast Response Time : Typically < 1ns.
Excellent Clamping Capability.
Glass Passivated Junction.
Built-in Strain relief.
Low inductance.
Low profile package.
High temperature solder:260℃/10 seconds at terminal Mechanical Characteristics.
