WS7.0P6SMB - Power Transient Voltage Suppressor

WAYON

📥 Download Datasheet

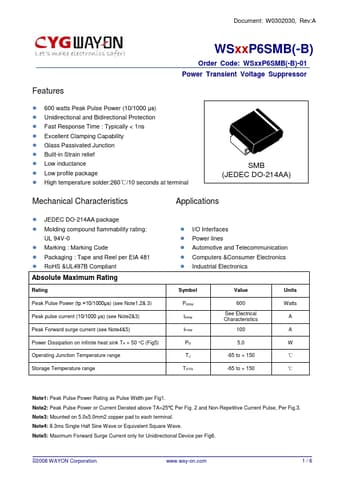

WS7.0P6SMB Datasheet Preview — Preview of WS7.0P6SMB PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WS7.0P6SMB
Manufacturer	WAYON
File Size	209.69 KB
Description	Power Transient Voltage Suppressor
Datasheet	WS7.0P6SMB-WAYON.pdf

WS7.0P6SMB Product details

Features

600 watts Peak Pulse Power (10/1000 μs).
Unidirectional and Bidirectional Protection.
Fast Response Time : Typically < 1ns.
Excellent Clamping Capability.
Glass Passivated Junction.
Built-in Strain relief.
Low inductance.
Low profile package.
High temperature solder:260℃/10 seconds at terminal SMB (JEDEC DO-214AA) Mechanical Characteristics.
