ENH050Q1-450

(ENH050Q1-xxx) Color TFT-LCD Module Features GENERAL DESCRIPTION

ENH050Q1-450 Features

* Slim, lightweight and compact 1. 2. 3. Active area/Outline area=70% Thickness: 16.5mm Mass: 185g (Max) Built-in video interface circuit and control circuit responsive to two sets of standard RGB analog video signals. Reduced refleciton as a resuld of low reflectance Black-Matrix and Index Matching (I

ENH050Q1-450 General Description

Panelview provides optically enhanced solutions to the standard Sharp LQ5AW136 color active matrix LCD module. The first enhancement is an index matching (IM) film lamination to the front surface of the display polarizer. The IM film is available in two surface treatments - IM/Clear and IM/110 (a 10% d.

ENH050Q1-450 Datasheet (350.85 KB)

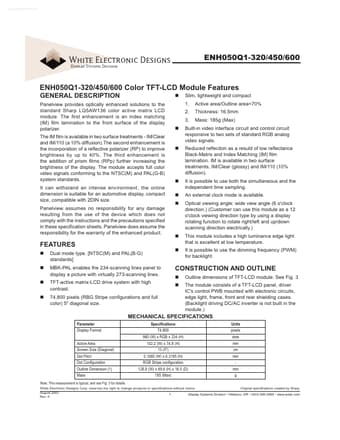

Preview of ENH050Q1-450 PDF

Datasheet Details

Part number:

ENH050Q1-450

Manufacturer:

WEDC

File Size:

350.85 KB

Description:

(enh050q1-xxx) color tft-lcd module features general description.
