DF15005S Datasheet - WEITRON

DF15005S Surface Mount Glass Passivated Bridge Rectifiers

DF15005S Features

* For Surface Mount Application

* Glass Passivated Chip

* Low Reverse Leakage Current

* Low Forward Voltage Drop And High Current Capability

* Plastic Meterial Has UL Flammability Classification 94V-0 Mechanical Data:

* Case : Molded Plastic

* Polarity : As marked on Body

DF15005S-WEITRON.pdf

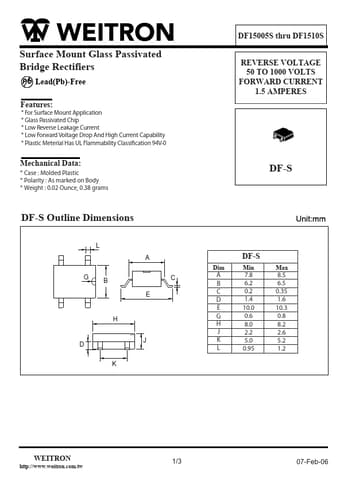

Preview of DF15005S PDF
DF15005S Datasheet Preview Page 2 DF15005S Datasheet Preview Page 3

Datasheet Details

Part number:

DF15005S

Manufacturer:

WEITRON

File Size:

188.63 KB

Description:

Surface mount glass passivated bridge rectifiers.
