Part number:
DZ23C51
Manufacturer:
WEITRON
File Size:
536.50 KB
Description:
Surface mount zener diode.
* Dual zeners common cathode con guration
* 300mW Power Dissipation
* Ideally suited for automated insertion

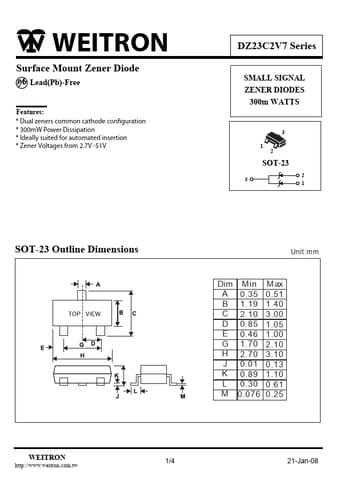

* Zener Voltages from 2.7V -51V DZ23C2V7 Series SMALL SIGNAL ZENER DIODES 300m WATTS 3 1 2 SOT-23 3 2 1 SOT-23 Outline Dimensions Unit :m m Dim M in M ax A 0.35 0.51
DZ23C51
WEITRON
536.50 KB
Surface mount zener diode.
