GBU25A 25A Glass Passivated Silicon Bridge Rectifiers

WILLAS

Description

Ϯϱ'ůĂƐƐWĂƐƐŝǀĂƚĞĚ^ŝůŝĐŽŶƌŝĚŐĞZĞĐƚŝĨŝĞƌ 'hϮϱ THRU 'hϮϱM PRIMARY CHARACTERISTICS VRRM 50V~1000V IO 25A VF 1.0V TJ,Max 150℃ .
only.

📥 Download Datasheet

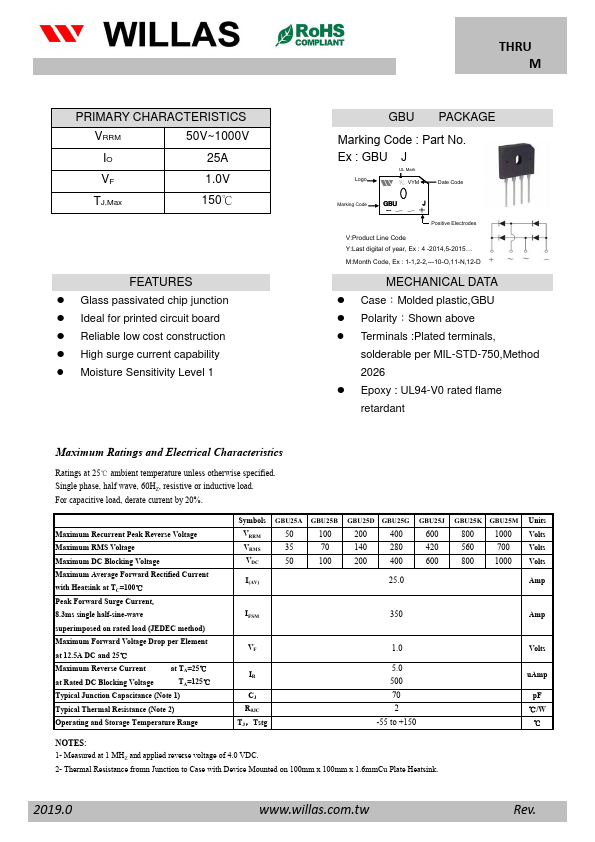

GBU25A Datasheet Preview — Preview of GBU25A PDF

Datasheet Specifications

Part number: GBU25A
Manufacturer: WILLAS
File Size: 1.09 MB
Datasheet: GBU25A-WILLAS.pdf
Description: 25A Glass Passivated Silicon Bridge Rectifiers

Features

* Glass passivated chip junction
* Ideal for printed circuit board
* Reliable low cost construction
* High surge current capability
* Moisture Sensitivity Level 1 GBU PACKAGE Marking Code : Part No. Ex : GBUJ Logo UL Mark VYM Date Code Marking Code GBU J Positive El

Applications

* and actual performance may vary over time. WILLAS does not assume any liability arising out of the application or use of any product or circuit. This is the preliminary specification. WILLAS products are not designed, intended or authorized for use in medical, life-saving implant or other applicatio
