STF8A80 - Bi-Directional Triode Thyristor

WINSEMI SEMICONDUCTOR

The STF8A80 by WINSEMI SEMICONDUCTOR is a Bi-Directional Triode Thyristor. Below is the official datasheet preview.

📥 Download Datasheet

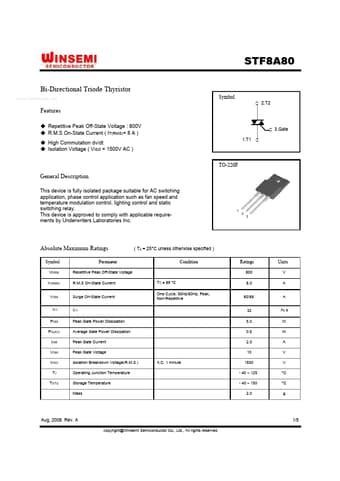

STF8A80 Bi-Directional Triode Thyristor by WINSEMI SEMICONDUCTOR - Datasheet Preview — Official preview page of the **STF8A80** Bi-Directional Triode Thyristor datasheet (WINSEMI SEMICONDUCTOR).

Datasheet Details

Part number	STF8A80
Manufacturer	WINSEMI SEMICONDUCTOR
File Size	275.77 KB
Description	Bi-Directional Triode Thyristor
Datasheet	STF8A80_WINSEMISEMICONDUCTOR.pdf
Additional preview pages of the STF8A80 datasheet.

STF8A80 Product details

Description

This device is fully isolated package suitable for AC switching application, phase control application such as fan speed and temperature modulation control, lighting control and static switching relay.

Features

Repetitive Peak Off-State Voltage : 800V.
R. M. S On-State Current ( IT(RMS)= 8 A ).
High Commutation dv/dt.
Isolation Voltage ( VISO = 1500V AC ) TO-220F ▼▲ ○ 3.Gate 1.T1 ○ General.
