1N4002 - 1.0A STANDARD DIODE

This page provides the datasheet information for the 1N4002, a member of the 1N4001-WON 1.0A STANDARD DIODE family.

Datasheet Summary

Features

  • Diffused Junction.
  • Low Forward Voltage Drop.
  • High Current Capability.
  • High Reliability.
  • High Surge Current Capability 1N4001.
  • 1N4007 1.0A.

📥 Download Datasheet

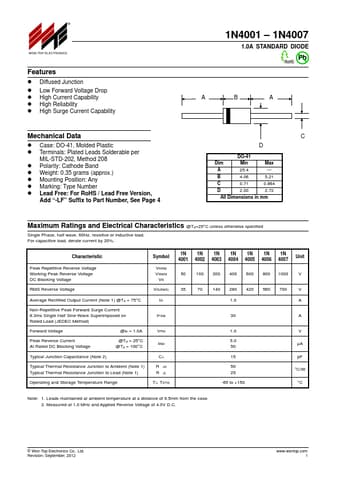

Datasheet preview – 1N4002

Datasheet Details

Part number 1N4002
Manufacturer WON-TOP
File Size 39.38 KB
Description 1.0A STANDARD DIODE
Datasheet download datasheet 1N4002 Datasheet
Additional preview pages of the 1N4002 datasheet.

📁 Similar Datasheet

  • 1N4002 - SILICON RECTIFIER DIODES (EIC)
  • 1N4002 - 1.0A RECTIFIER (Vishay Siliconix)
  • 1N4002 - Axial Lead Standard Recovery Rectifiers (ON Semiconductor)
  • 1N4002 - General Purpose Rectifiers (Fairchild Semiconductor)
  • 1N4002 - General Purpose Plastic Rectifiers (LRC)
  • 1N4002 - 1.0A RECTIFIER (Diodes)
  • 1N4002 - General Purpose Plastic Rectifiers (New Jersey Semi-Conductor)
  • 1N4002 - 1.0 Amp Rectifier (MCC)
  • 1N4002 - AXIAL LEADED RECTIFIER DIODES (Sunmate)
  • 1N4002 - 1.0 SILICON RECTIFIER (SMC Diode)
Other Datasheets by WON-TOP
  • 1N4002G - 1.0A GLASS PASSIVATED STANDARD DIODE
  • 1N4001 - 1.0A STANDARD DIODE
  • 1N4001G - 1.0A GLASS PASSIVATED STANDARD DIODE
  • 1N4003 - 1.0A STANDARD DIODE
  • 1N4003G - 1.0A GLASS PASSIVATED STANDARD DIODE
  • 1N4004G - 1.0A GLASS PASSIVATED STANDARD DIODE
  • 1N4005G - 1.0A GLASS PASSIVATED STANDARD DIODE
  • 1N4006 - 1.0A STANDARD DIODE

Full PDF Text Transcription

Click to expand full text
® WON-TOP ELECTRONICS Features  Diffused Junction  Low Forward Voltage Drop  High Current Capability  High Reliability  High Surge Current Capability 1N4001 – 1N4007 1.0A STANDARD DIODE Pb A B A Mechanical Data  Case: DO-41, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band  Weight: 0.35 grams (approx.)  Mounting Position: Any  Marking: Type Number  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 C D DO-41 Dim Min Max A 25.4 — B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load.
