20KP96A, 20KP20A-WON - 20000W TRANSIENT VOLTAGE SUPPRESSOR

WON-TOP

Datasheet Details

Part number	20KP96A, 20KP20A-WON
Manufacturer	WON-TOP
File Size	89.98 KB
Description	20000W TRANSIENT VOLTAGE SUPPRESSOR

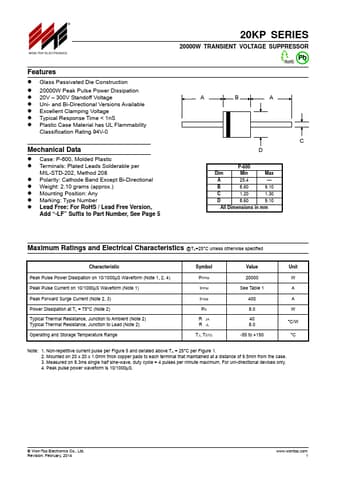

Datasheet	20KP20A-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: 20KP96A, 20KP20A-WON. Please refer to the document for exact specifications by model.

Glass Passivated Die Construction.
20000W Peak Pulse Power Dissipation.
20V.
300V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
Case: P-600, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band Except Bi-Directional.
Weight:.
