BZX84C36W, BZX84C2V4W-WON - 200mW SURFACE MOUNT ZENER DIODE

WON-TOP

📥 Download Datasheet

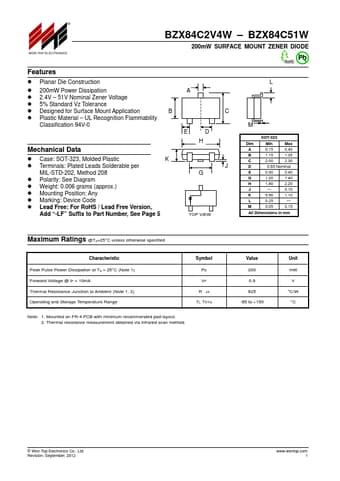

BZX84C36W Datasheet Preview — This datasheet PDF includes multiple part numbers: BZX84C36W, BZX84C2V4W-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BZX84C36W, BZX84C2V4W-WON
Manufacturer: WON-TOP
File Size: 47.36 KB
Datasheet: BZX84C2V4W-WON-TOP.pdf
Description: 200mW SURFACE MOUNT ZENER DIODE
Note: This datasheet PDF includes multiple part numbers: BZX84C36W, BZX84C2V4W-WON.
Please refer to the document for exact specifications by model.

BZX84C36W Product details

Features

Planar Die Construction.
200mW Power Dissipation.
2.4V.
51V Nominal Zener Voltage.
5% Standard Vz Tolerance.
Designed for Surface Mount Application.
Plastic Material.
UL Recognition Flammability Classification 94V-0 B Mechanical Data.
Case: SOT-323, Molded Plastic K.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 0.006 grams (approx. ).
Mounting Position: Any.
Marki.
