GS1A - 1.0A SURFACE MOUNT STANDARD DIODE

WON-TOP

📥 Download Datasheet

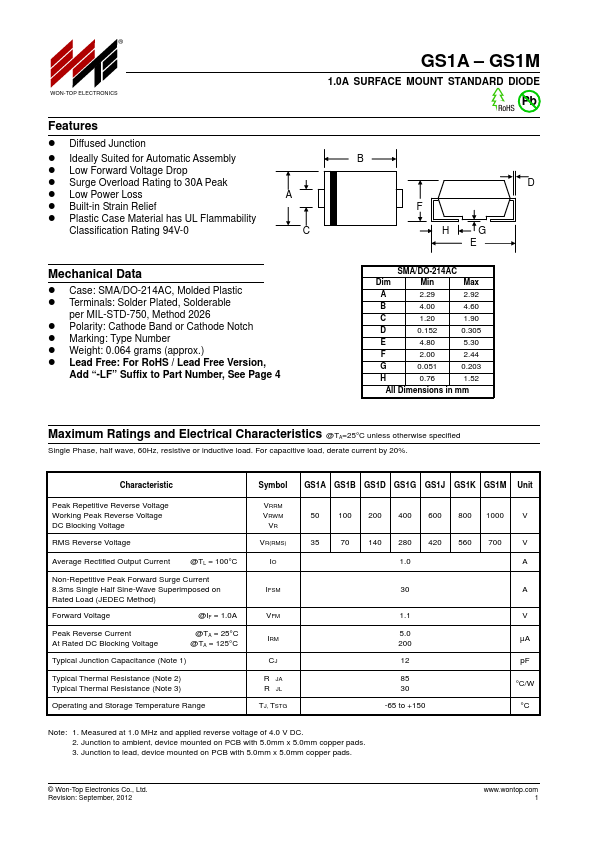

GS1A Datasheet Preview — Preview of GS1A PDF

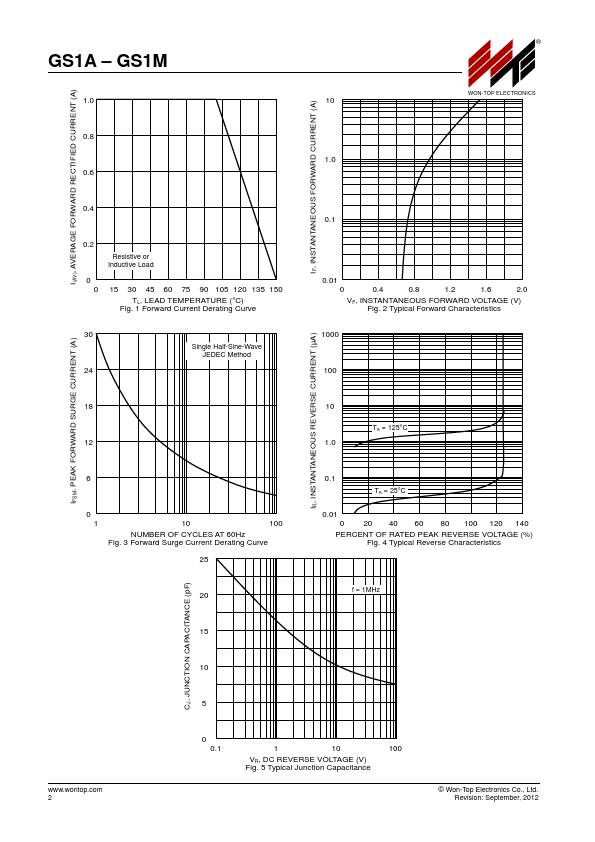

datasheet Preview Page 2

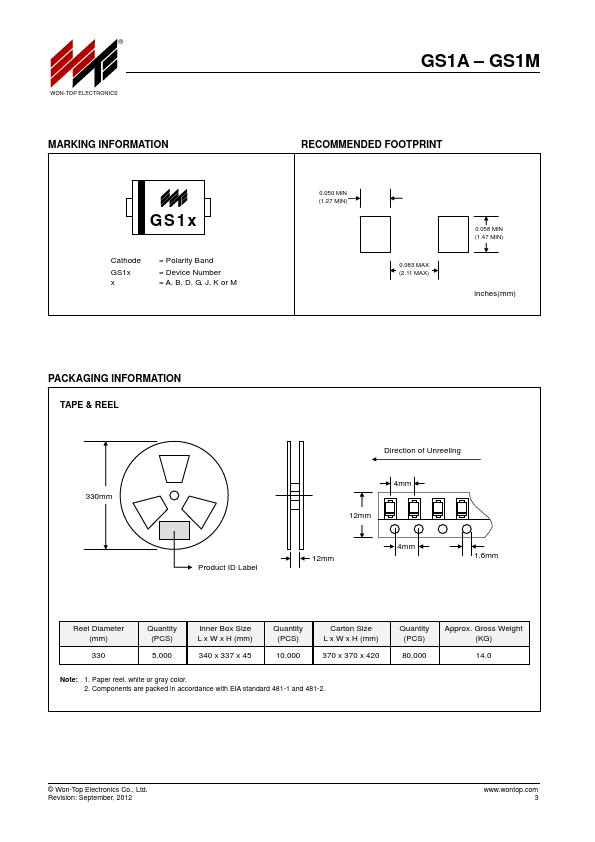

datasheet Preview Page 3

Datasheet Details

Part number	GS1A
Manufacturer	WON-TOP
File Size	38.55 KB
Description	1.0A SURFACE MOUNT STANDARD DIODE
Datasheet	GS1A-WONTOP.pdf

GS1A Product details

Features

Diffused Junction.
Ideally Suited for Automatic Assembly.
Low Forward Voltage Drop.
Surge Overload Rating to 30A Peak.
Low Power Loss.
Built-in Strain Relief.
Plastic Case Material has UL Flammability Classification Rating 94V-0 GS1A.
GS1M 1.0A.
