GS1A-L - RECTIFIER

GS1A-L Description

GS1A-L~GS1M-L GLASS PASSIVATED RECTIFIER VOLTAGE 50 to 1000 Volt CURRENT 1 Ampere .

GS1A-L Applications

* in order to optimize board space
* Easy pick and place
* Plastic package has Underwriters Laboratory Flammability Classification 94V-O
* Low Forward Drop
* High temperature soldering : 260°C /10 seconds at terminals
* Glass Passivated Junction MECHANICAL DATA

📥 Download Datasheet

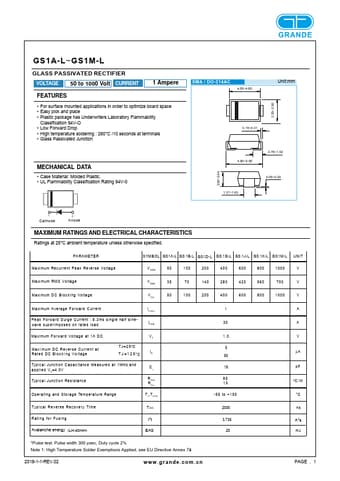

Preview of GS1A-L PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS1A-L
Manufacturer
PAN JIT
File Size
1.64 MB
Datasheet
GS1A-L-PANJIT.pdf
Description
RECTIFIER
