KBPC2500S, KBPC2500S-WON, 25A SINGLE PHASE BRIDGE RECTIFIER

® WON-TOP ELECTRONICS KBPC25S SERIES 25A SINGLE PHASE BRIDGE RECTIFIER Pb .

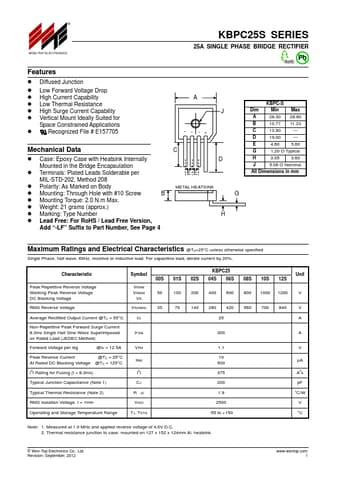

datasheet Preview Page 1 from Datasheet4u.com

KBPC2500S-WON-TOP.pdf

KBPC2500S Datasheet Preview — This datasheet PDF includes multiple part numbers: KBPC2500S, KBPC2500S-WON. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KBPC2500S, KBPC2500S-WON

Manufacturer:

WON-TOP

File Size:

39.91 KB

Description:

25A SINGLE PHASE BRIDGE RECTIFIER

Note:

This datasheet PDF includes multiple part numbers: KBPC2500S, KBPC2500S-WON.
Please refer to the document for exact specifications by model.

Features

* Diffused Junction
* Low Forward Voltage Drop
* High Current Capability
* Low Thermal Resistance
* High Surge Current Capability

Applications

* Recognized File # E157705 A J - ~ ~+ Mechanical Data
* Case: Epoxy Case with Heatsink Internally Mounted in the Bridge Encapsulation
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: As Marked on Body
* Mounting: Through Hole with #10 Screw
