LB4S

0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

LB4S Features

* Ultra-Slim 1.6mm Max. Case Height

* Glass Passivated Die Construction

* High Reliability

* Low Forward Voltage Drop

* High Surge Current Capability

* Designed for Surface Mount Application

* Plastic Material

* UL Flammability 94V-0 Mechanical Data

* Case: MB

LB4S Datasheet (36.61 KB)

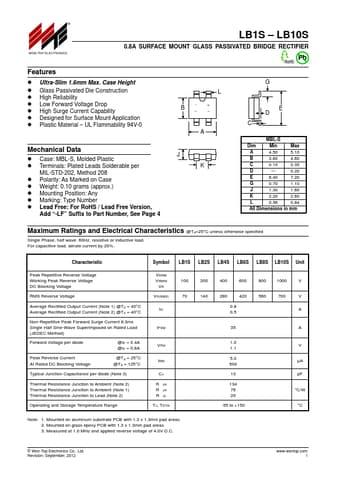

Preview of LB4S PDF

Datasheet Details

Part number:

LB4S

Manufacturer:

WON-TOP

File Size:

36.61 KB

Description:

0.8a surface mount glass passivated bridge rectifier.
