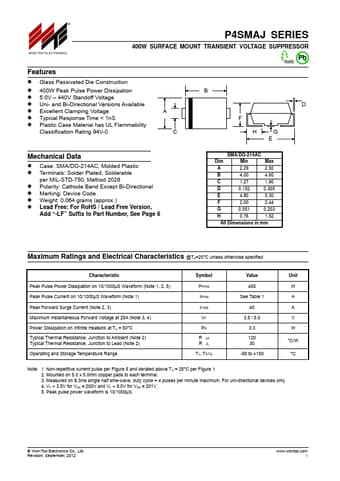

P4SMAJ160, P4SMAJ5.0-WON - 400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

WON-TOP

Datasheet Details

Part number	P4SMAJ160, P4SMAJ5.0-WON
Manufacturer	WON-TOP
File Size	97.53 KB
Description	400W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	P4SMAJ5.0-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: P4SMAJ160, P4SMAJ5.0-WON. Please refer to the document for exact specifications by model.

Glass Passivated Die Construction.
400W Peak Pulse Power Dissipation.
5.0V.
440V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F H G E D Mechanical Data.
Case: SMA/DO-214AC, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band Excep.
