SB10100F - 10A SCHOTTKY BARRIER RECTIFIER

Product Overview

WON-TOP

📥 Download Datasheet

SB10100F 10A SCHOTTKY BARRIER RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – SB10100F

Datasheet Details

Part number	SB10100F
Manufacturer	WON-TOP
File Size	41.76 KB
Description	10A SCHOTTKY BARRIER RECTIFIER
Datasheet	SB10100F Datasheet
Note	This datasheet PDF includes multiple part numbers: SB10100F, SB1020F-WON. Please refer to the document for exact specifications by model.

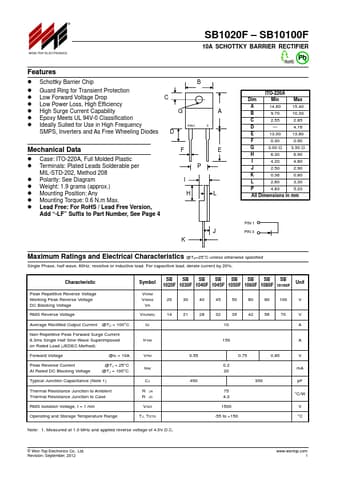

Additional preview pages of the SB10100F datasheet.

Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: ITO-220A, Full Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.
