SB1020, SB1020-WON Datasheet - WON-TOP

SB1020 10A SCHOTTKY BARRIER RECTIFIER

SB1020 Features

* Schottky Barrier Chip

* Guard Ring for Transient Protection

* Low Forward Voltage Drop

* Low Power Loss, High Efficiency

* High Surge Current Capability

* Epoxy Meets UL 94V-0 Classification

* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling

SB1020-WON-TOP.pdf

This datasheet PDF includes multiple part numbers: SB1020, SB1020-WON. Please refer to the document for exact specifications by model.

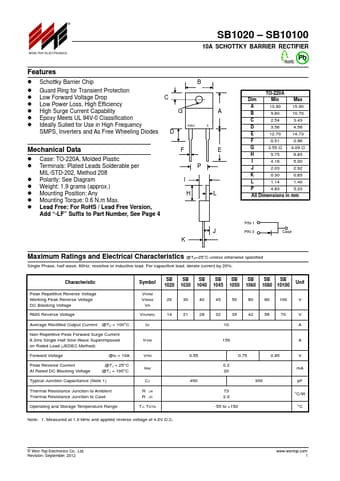

SB1020 Datasheet Preview Page 2 SB1020 Datasheet Preview Page 3

Datasheet Details

Part number:

SB1020, SB1020-WON

Manufacturer:

WON-TOP

File Size:

41.68 KB

Description:

10a schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: SB1020, SB1020-WON.
Please refer to the document for exact specifications by model.
