SB1060F

The SB1060F is 10A SCHOTTKY BARRIER RECTIFIER designed by WON-TOP.

Product Overview

WON-TOP

Part number	SB1060F, SB1020F-WON
Manufacturer	WON-TOP
File Size	41.76 KB
Description	10A SCHOTTKY BARRIER RECTIFIER
Datasheet	SB1020F-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB1060F, SB1020F-WON. Please refer to the document for exact specifications by model.

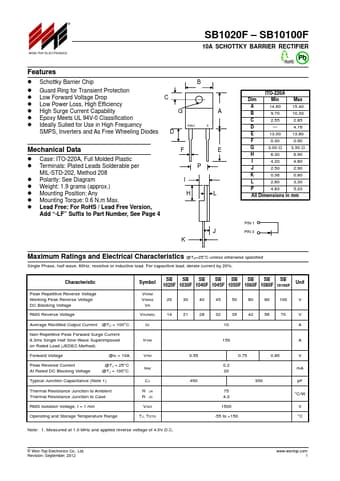

Additional preview pages of the SB1060F datasheet.

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: ITO-220A, Full Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.
