SB1080

The SB1080 is 10A SCHOTTKY BARRIER RECTIFIER designed by WON-TOP.

Product Overview

WON-TOP

📥 Download Datasheet

SB1080 10A SCHOTTKY BARRIER RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – SB1080

Datasheet Details

Part number	SB1080, SB1020-WON
Manufacturer	WON-TOP
File Size	41.68 KB
Description	10A SCHOTTKY BARRIER RECTIFIER
Datasheet	SB1020-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB1080, SB1020-WON. Please refer to the document for exact specifications by model.

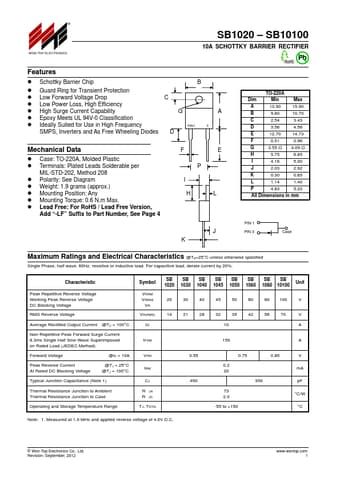

Additional preview pages of the SB1080 datasheet.

Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: TO-220A, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.9 gra.
