The SB1080CT is 10A DUAL SCHOTTKY BARRIER RECTIFIER designed by WON-TOP.

Product Overview

WON-TOP

📥 Download Datasheet

SB1080CT 10A DUAL SCHOTTKY BARRIER RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – SB1080CT

Datasheet Details

Part number	SB1080CT, SB1020CT-WON
Manufacturer	WON-TOP
File Size	42.15 KB
Description	10A DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	SB1020CT-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB1080CT, SB1020CT-WON. Please refer to the document for exact specifications by model.

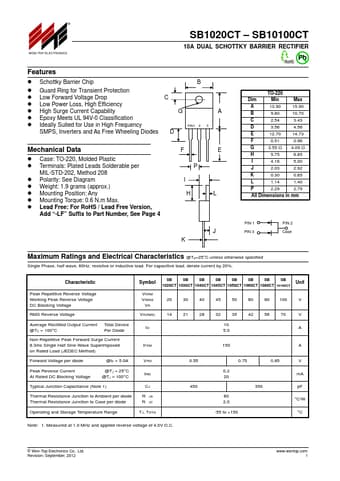

Additional preview pages of the SB1080CT datasheet.

Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 2 3 A Mechanical Data.
Case: TO-220, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.9 gr.
