SB2020FCT - 20A DUAL SCHOTTKY BARRIER RECTIFIER

Product Overview

WON-TOP

Part number	SB2020FCT
Manufacturer	WON-TOP
File Size	42.53 KB
Description	20A DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	SB2020FCT Datasheet
Note	This datasheet PDF includes multiple part numbers: SB2020FCT, SB2020FCT-WON. Please refer to the document for exact specifications by model.

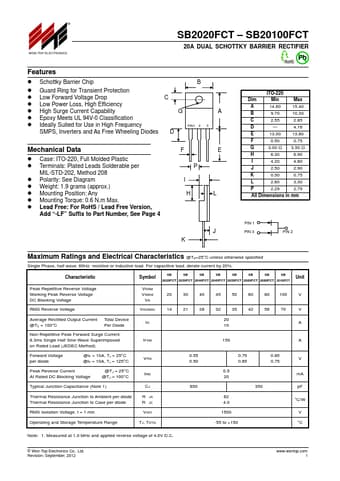

Additional preview pages of the SB2020FCT datasheet.

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 2 3 A Mechanical Data.
Case: ITO-220, Full Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight:.
