SB280, SB220-WON Datasheet - WON-TOP

SB280 - 2.0A SCHOTTKY BARRIER DIODE

SB280 Features

* Schottky Barrier Chip

* Guard Ring for Transient and ESD Protection

* Surge Overload Rating to 50A Peak

* Low Power Loss, High Efficiency

* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data

* Case: DO-15, Molded Plastic

SB220-WON-TOP.pdf

This datasheet PDF includes multiple part numbers: SB280, SB220-WON. Please refer to the document for exact specifications by model.

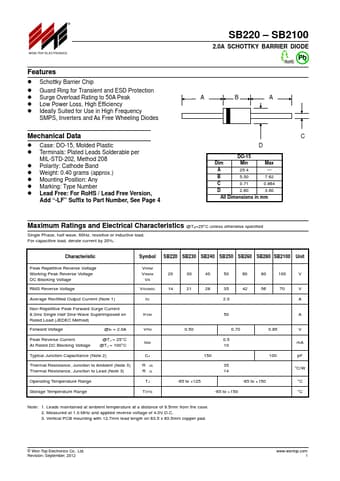

SB280 Datasheet Preview Page 2 SB280 Datasheet Preview Page 3

Datasheet Details

Part number:

SB280, SB220-WON

Manufacturer:

WON-TOP

File Size:

40.42 KB

Description:

2.0a schottky barrier diode.

Note:

This datasheet PDF includes multiple part numbers: SB280, SB220-WON.
Please refer to the document for exact specifications by model.
