SB3060DC, SB3020DC-WON - 30A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER

WON-TOP

Datasheet Details

Part number	SB3060DC, SB3020DC-WON
Manufacturer	WON-TOP
File Size	42.41 KB

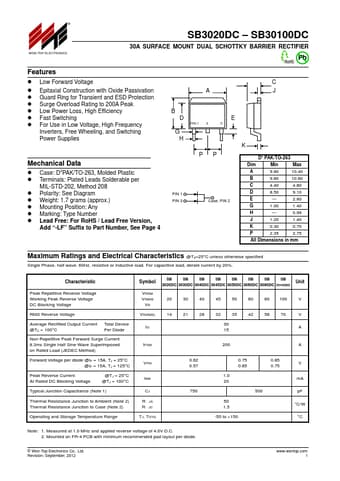

Description	30A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	SB3020DC-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB3060DC, SB3020DC-WON. Please refer to the document for exact specifications by model.

Low Forward Voltage.
Epitaxial Construction with Oxide Passivation.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 200A Peak.
Low Power Loss, High Efficiency.
Fast Switching.
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Switching Power Supplies Mechanical Data.
Case: D2PAK/TO-263, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.7.
