The SB860F is 8.0A SCHOTTKY BARRIER RECTIFIER designed by WON-TOP.

Product Overview

WON-TOP

📥 Download Datasheet

SB860F 8.0A SCHOTTKY BARRIER RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – SB860F

Datasheet Details

Part number	SB860F, SB820F-WON
Manufacturer	WON-TOP
File Size	41.73 KB
Description	8.0A SCHOTTKY BARRIER RECTIFIER
Datasheet	SB820F-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB860F, SB820F-WON. Please refer to the document for exact specifications by model.

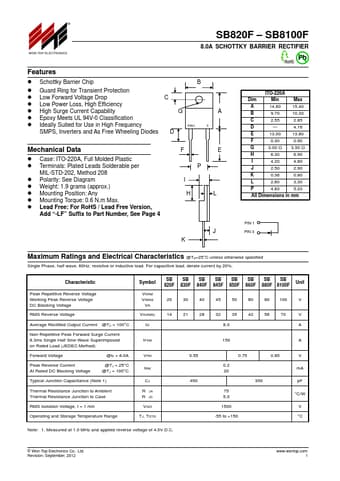

Additional preview pages of the SB860F datasheet.

Product details

Features

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: ITO-220A, Full Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.
