SK5200, SK5150-WON - 5.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE

SK5200 Description

® WON-TOP ELECTRONICS SK5150 * SK5200 5.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb .

SK5200 Features

* Low Forward Voltage
* Epitaxial Construction with Oxide Passivation
* Guard Ring for Transient and ESD Protection
* Surge Overload Rating to 125A Peak
* Low Power Loss A
* Fast Switching
* Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Whe

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SK5200, SK5150-WON. Please refer to the document for exact specifications by model.

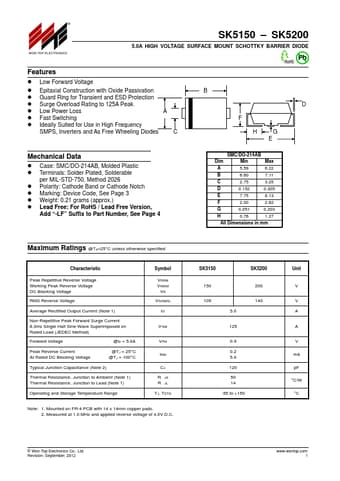

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK5200, SK5150-WON
Manufacturer
WON-TOP
File Size
38.28 KB
Datasheet
SK5150-WON-TOP.pdf
Description
5.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE
Note
This datasheet PDF includes multiple part numbers: SK5200, SK5150-WON.
Please refer to the document for exact specifications by model.
