SK520 - SCHOTTKY RECTIFIER

SK520 Description

Technical Data Data Sheet N0107, Rev.B SK520 SCHOTTKY RECTIFIER SK520 SMC .

SK520 Features

* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* High Current Capability
* Low Power Loss, High Efficiency
* High Surge Current Capability

SK520 Applications

* Terminals finish: 100% Pure Tin
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Circuit Diagram Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blo

📥 Download Datasheet

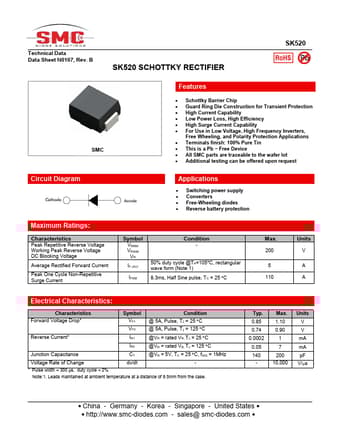

Preview of SK520 PDF
