SK56B - SCHOTTKY RECTIFIER

SK56B Description

Technical Data Data Sheet N0941, Rev.A SK56B SCHOTTKY RECTIFIER SK56B SMB .

SK56B Features

* Small foot print, surface mountable
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term
* reliability
* Green products in compliance the ROHS directive
* This is a Pb - Free device
* All SMC parts are traceab

SK56B Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak Repetitive Forward Current Peak One Cycl

📥 Download Datasheet

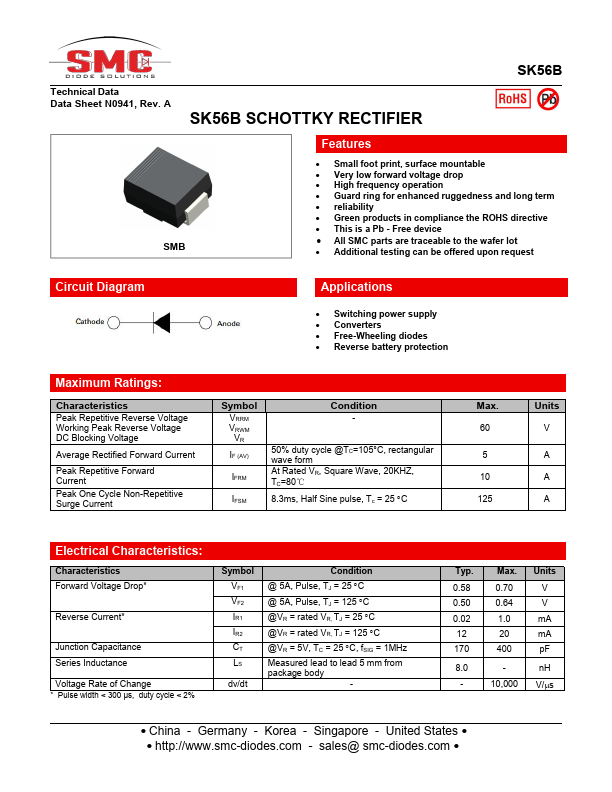

Preview of SK56B PDF

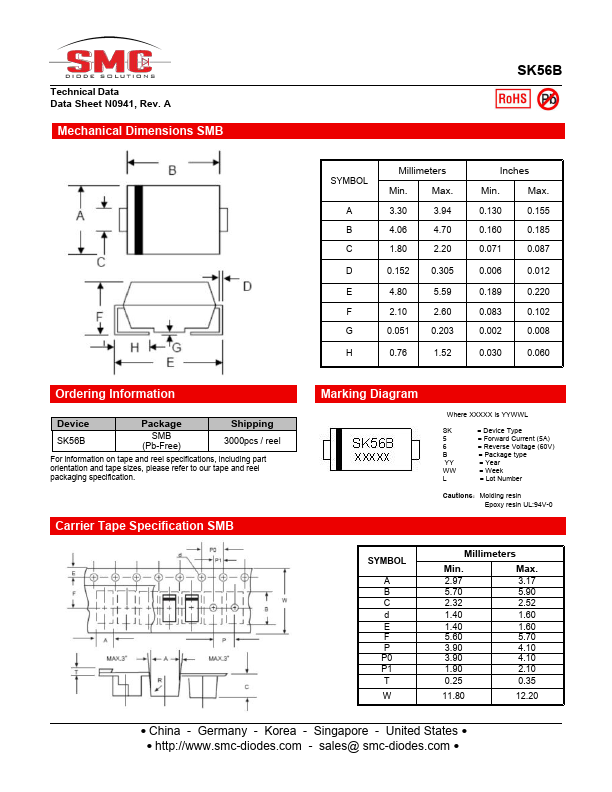

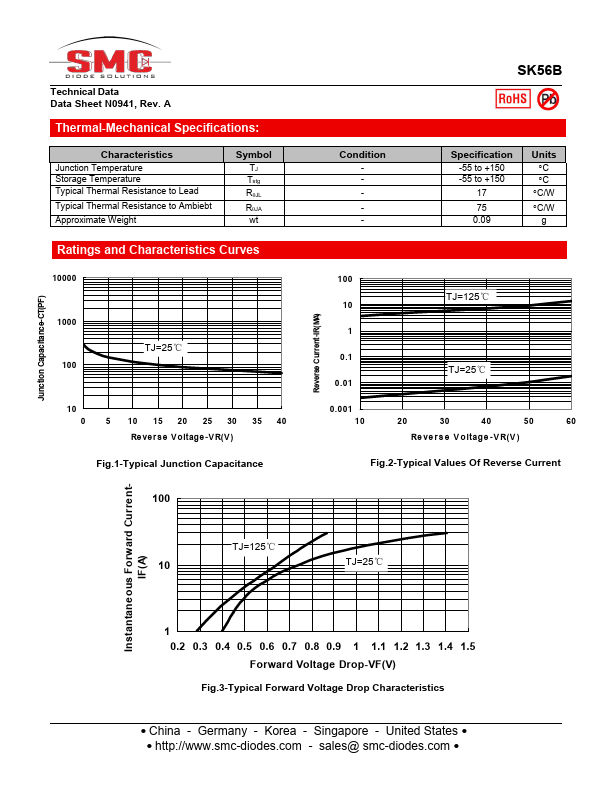

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK56B
Manufacturer
SMC Diode
File Size
178.54 KB
Datasheet
SK56B-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
