SK54B - SCHOTTKY RECTIFIER

Product Overview

SMC Diode

📥 Download Datasheet

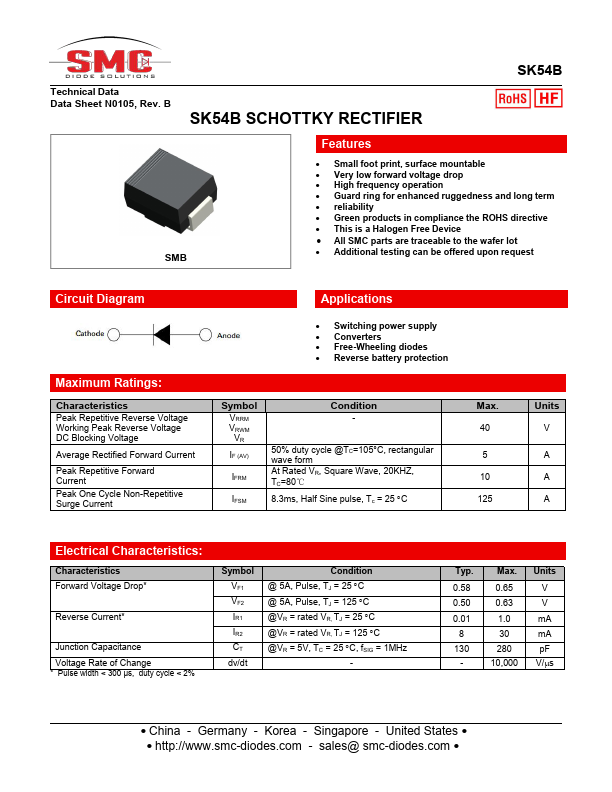

SK54B SCHOTTKY RECTIFIER by SMC Diode - Datasheet Preview — Datasheet preview – SK54B

Datasheet Details

Part number	SK54B
Manufacturer	SMC Diode
File Size	378.92 KB
Description	SCHOTTKY RECTIFIER
Datasheet	SK54B Datasheet

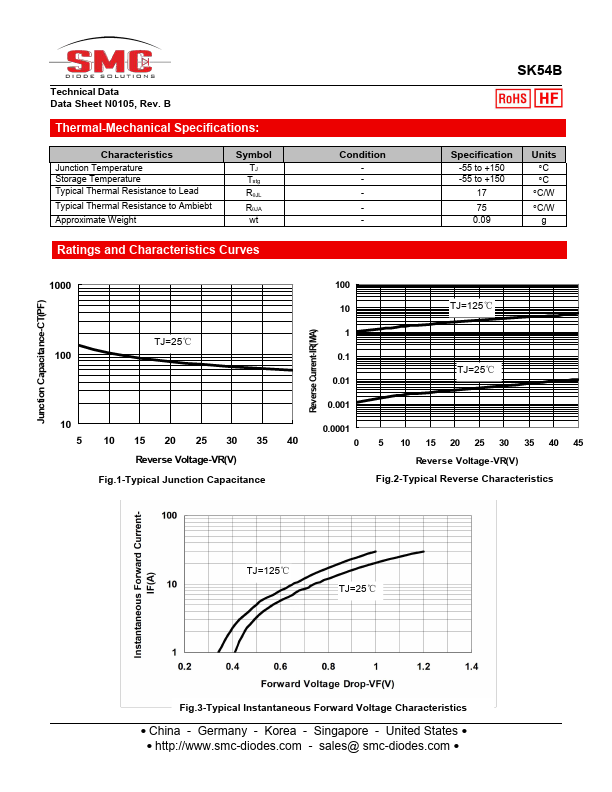

Additional preview pages of the SK54B datasheet.

Product details

Features

Small foot print, surface mountable.
Very low forward voltage drop.
High frequency operation.
Guard ring for enhanced ruggedness and long term.
reliability.
Green products in compliance the ROHS directive.
This is a Halogen Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking V.
