SK510B SCHOTTKY RECTIFIER

SK510B Description

Technical Data Data Sheet N0950, Rev.B SK510B SCHOTTKY RECTIFIER .

SK510B Features

* SK510B SMB
* Small foot print, surface mountable
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term
* reliability
* Green products in compliance the ROHS directive
* This is a Pb - Free device
* All SMC par

SK510B Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Symbol VRRM VRWM VR IF (AV) IFSM Condition - 50% duty cycle @TL=115C, rectangular wave form 8.3ms, Half Sine pulse, Tc = 25 C Max. 100 5 120 Units V A A Electrical Characteristics: Charac

📥 Download Datasheet

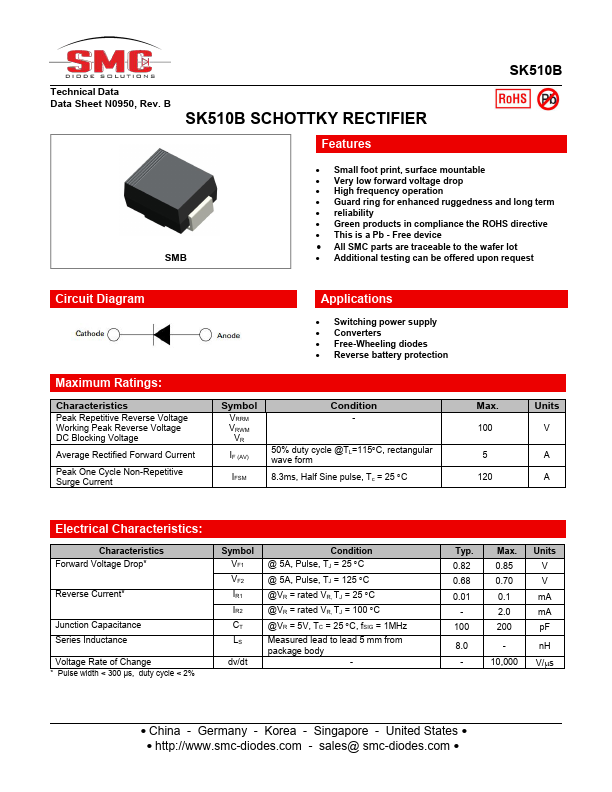

Preview of SK510B PDF

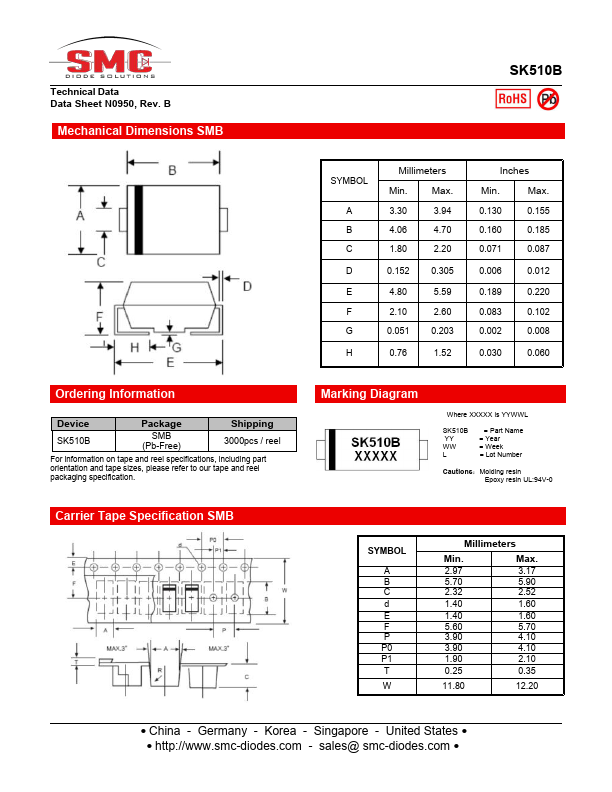

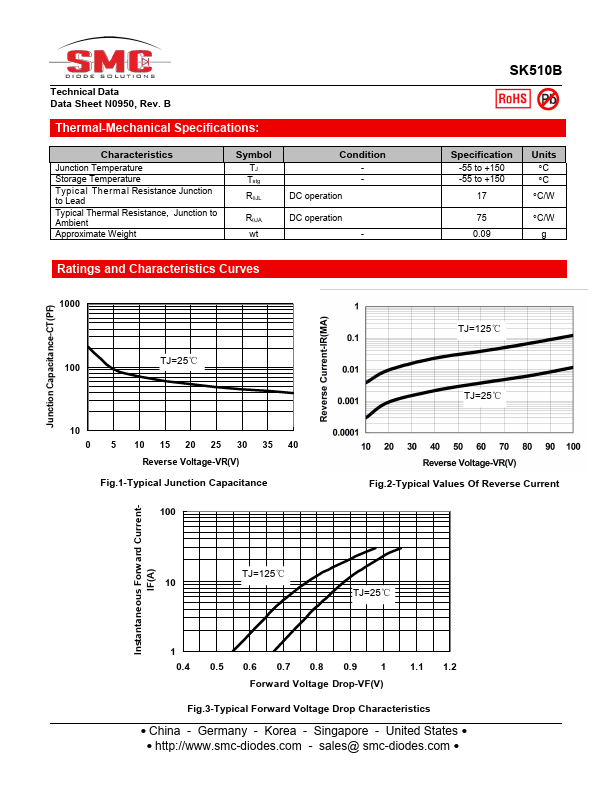

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK510B
Manufacturer
SMC Diode
File Size
438.19 KB
Datasheet
SK510B-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
