SK54 SCHOTTKY RECTIFIER

SK54 Description

Technical Data Data Sheet N0939, Rev.A SK54 SCHOTTKY RECTIFIER SK54 SMC .

SK54 Features

* Small foot print,surface mountable
* Very low forward Voltage Drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Terminals finish: 100% Pure Tin
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer

SK54 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current

📥 Download Datasheet

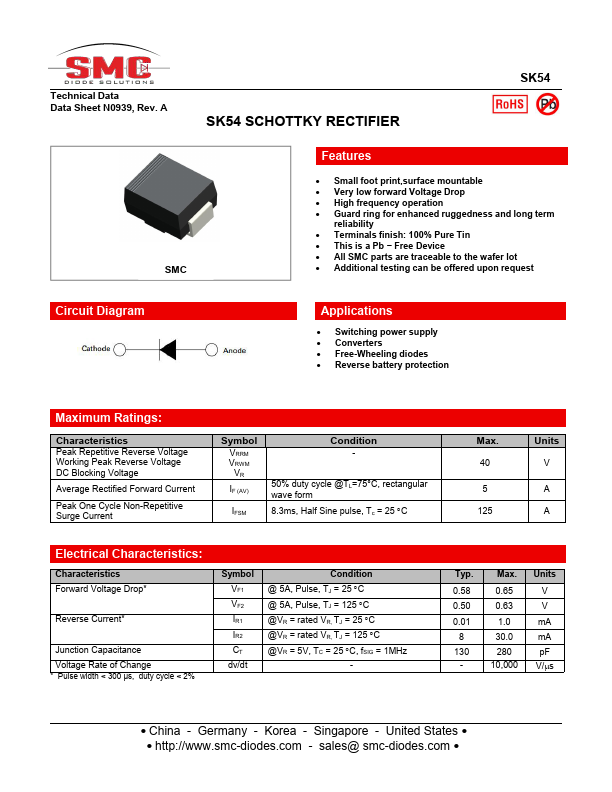

Preview of SK54 PDF

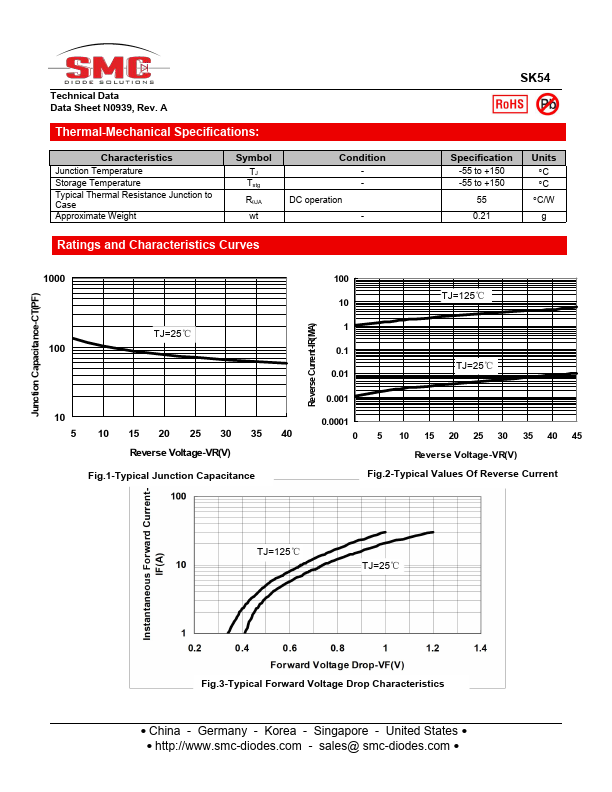

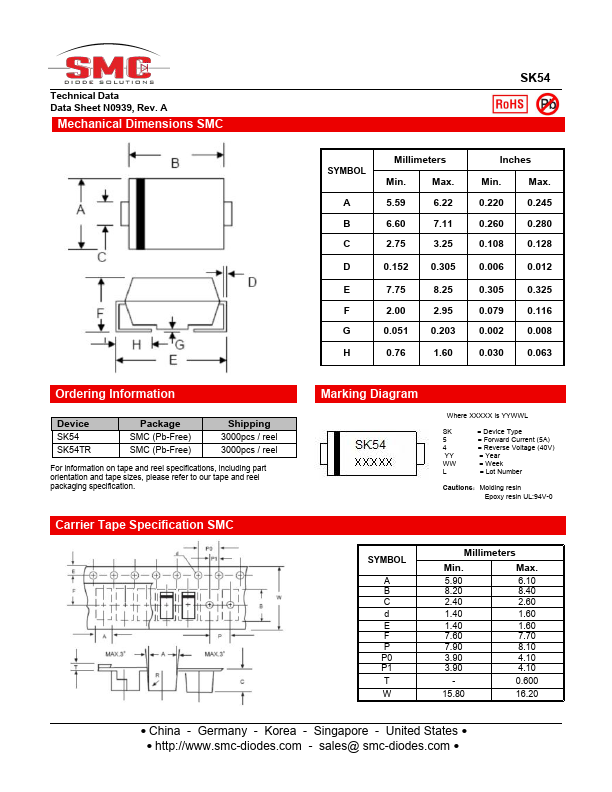

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK54
Manufacturer
SMC Diode
File Size
369.63 KB
Datasheet
SK54-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
