BAT54WS - SURFACE MOUNT SCHOTTKY BARRIER DIODE

BAT54WS Product details

Features

  • Low Turn-On Voltage.
  • Fast Switching Speed A.
  • PN Junction Guard Ring for Transient and ESD Protection.
  • For General Purpose Switching.

📥 Download Datasheet

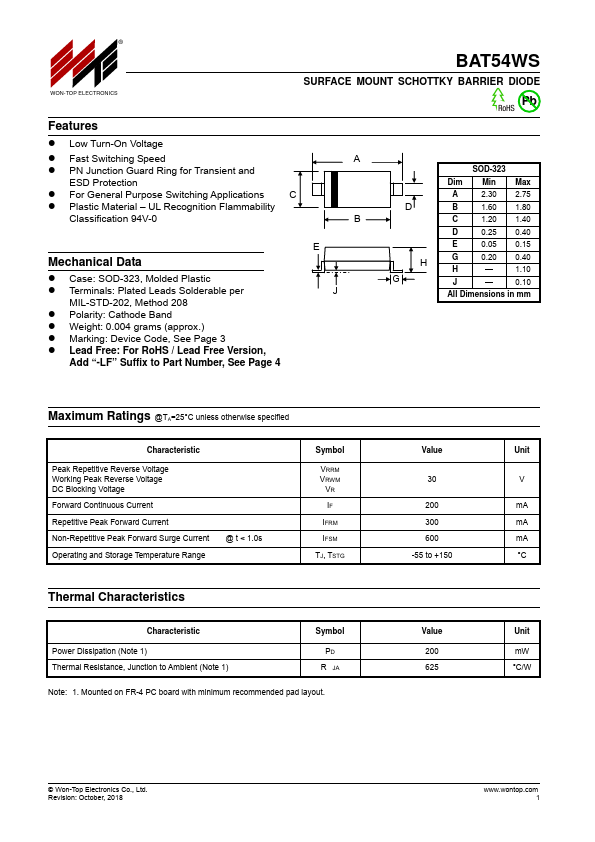

Preview of BAT54WS PDF

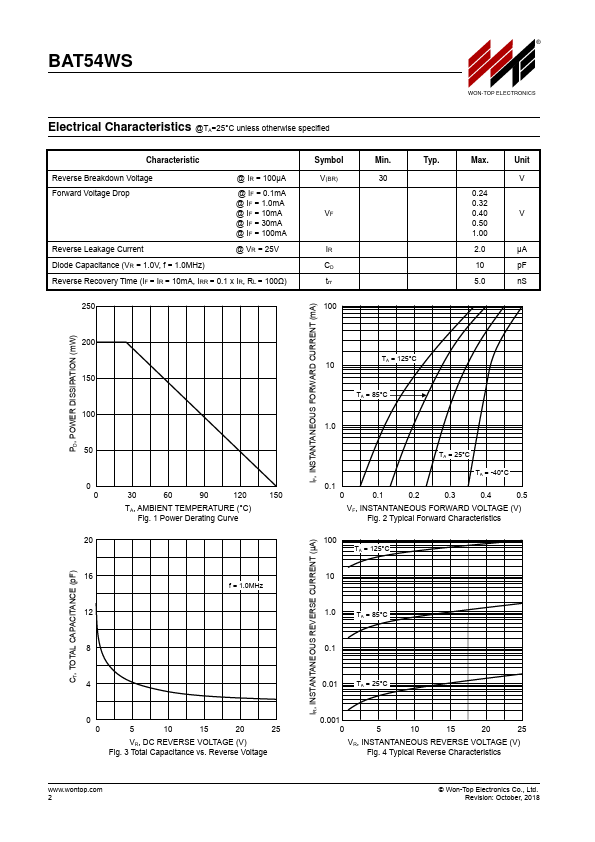

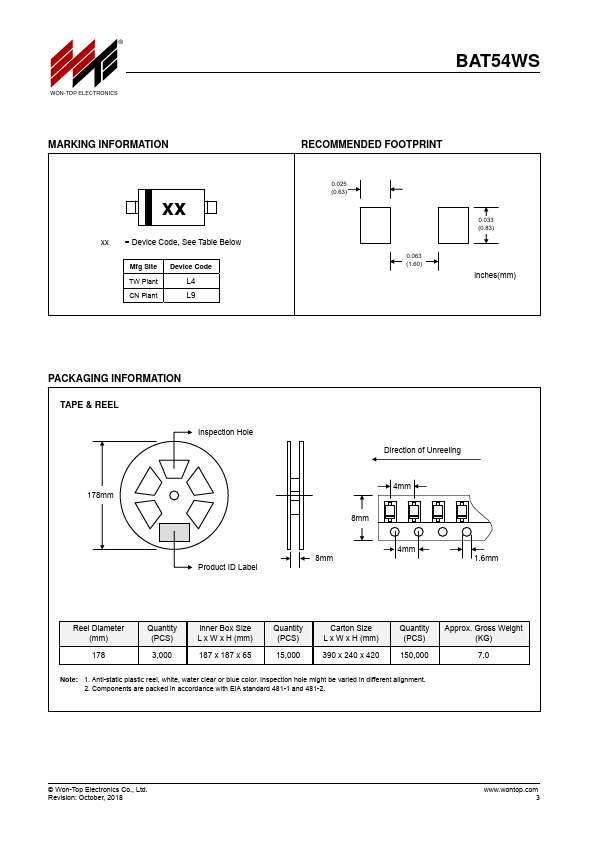

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT54WS
Manufacturer
WONTOP
File Size
80.99 KB
Datasheet
BAT54WS-WONTOP.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER DIODE
