SM8S26A, SM8S10A, High Temperature Stability and High Reliability Transient Voltage Suppressors

SM8S SERIES High Temperature Stability and High Reliability Transient Voltage Suppressors SM8S SERIES High Temperature Stability and High Reliability .

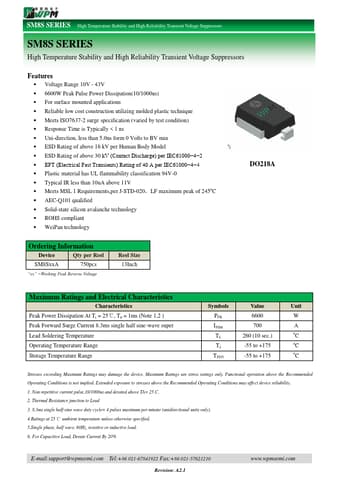

datasheet Preview Page 1 from Datasheet4u.com

SM8S10A-WPM.pdf

SM8S26A Datasheet Preview — This datasheet PDF includes multiple part numbers: SM8S26A, SM8S10A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SM8S26A, SM8S10A

Manufacturer:

WPM

File Size:

464.50 KB

Description:

High Temperature Stability and High Reliability Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: SM8S26A, SM8S10A.
Please refer to the document for exact specifications by model.

Features

* Voltage Range 10V - 43V
* 6600W Peak Pulse Power Dissipation(10/1000us)

Applications

* Reliable low cost construction utilizing molded plastic technique
* Meets ISO7637-2 surge specification (varied by test condition)
* Response Time is Typically < 1 ns
* Uni-direction, less than 5.0ns form 0 Volts to BV min
* ESD Rating of above 16 kV per Human Body Model
