10BJ110CA, 10BJ5.0A - 1000WTransient VoltageSuppressor

10BJ110CA Description

Integrated in OVP&OCP products provider 10BJ Series 1000W Transient Voltage Suppressor .
TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications,.

10BJ110CA Features

* Glass passivated or planar junction
* Excellent clamping capability
* Repetition rate (duty cycle): 0.01%
* Low profile package and low inductance
* 1000W Peak Pulse power capability at 10×1000μs waveform.
* Fast response time: typically less than 1.0ps from 0V to VBR min.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 10BJ110CA, 10BJ5.0A. Please refer to the document for exact specifications by model.

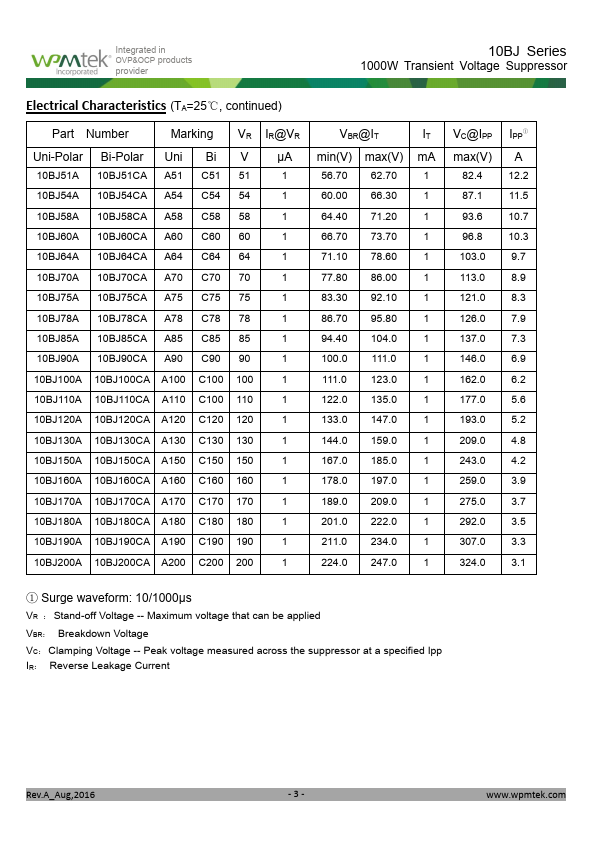

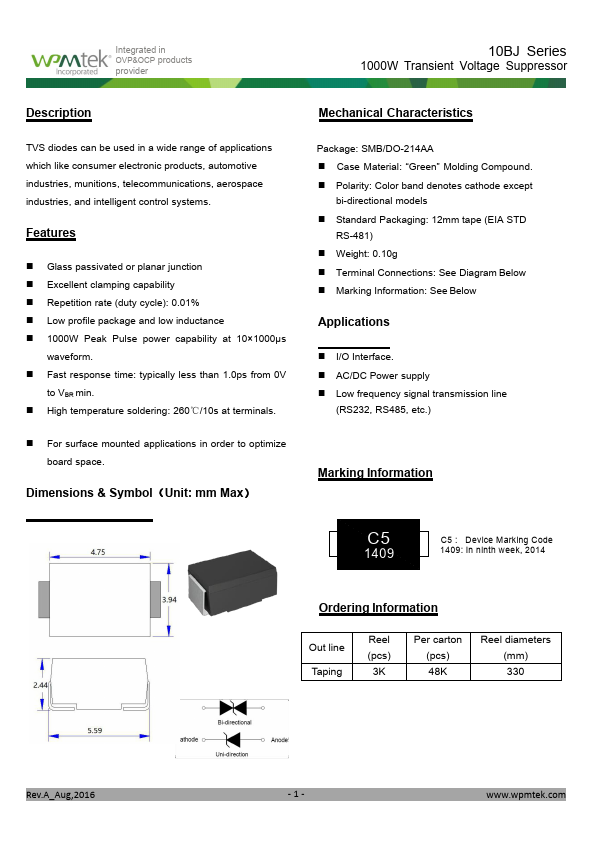

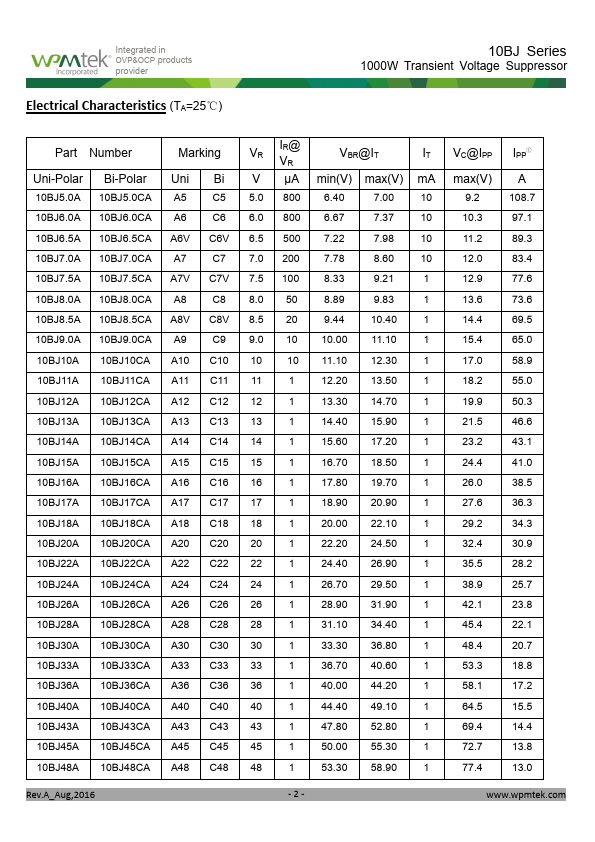

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
10BJ110CA, 10BJ5.0A
Manufacturer
WPMTEK
File Size
326.78 KB
Datasheet
10BJ5.0A-WPMTEK.pdf
Description
1000WTransient VoltageSuppressor
Note
This datasheet PDF includes multiple part numbers: 10BJ110CA, 10BJ5.0A.
Please refer to the document for exact specifications by model.
