5.0SMDJ100A, 5.0SMDJ12A, 5000W Transient Voltage Suppressor

5.0SMDJ Series 5000W Transient Voltage Suppressor Rev.01 - 08 December 2023 Product data sheet 1.General .
5.

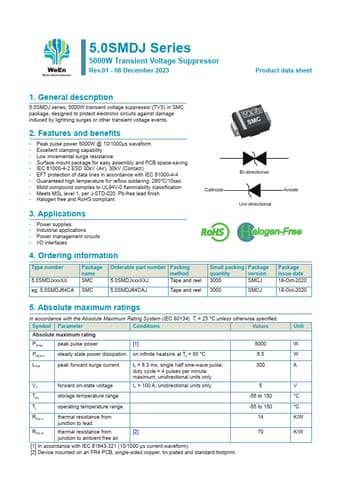

datasheet Preview Page 1 from Datasheet4u.com

5.0SMDJ12A-WeEn.pdf

5.0SMDJ100A Datasheet Preview — This datasheet PDF includes multiple part numbers: 5.0SMDJ100A, 5.0SMDJ12A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

5.0SMDJ100A, 5.0SMDJ12A

Manufacturer:

WeEn

File Size:

500.25 KB

Description:

5000W Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: 5.0SMDJ100A, 5.0SMDJ12A.
Please refer to the document for exact specifications by model.

Features

* Peak pulse power 5000W @ 10/1000μs waveform
* Excellent clamping capability
* Low incremental surge resistance
* Surface mount package for easy assembly and PCB space-saving
* IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact)
* EFT protection of data line

Applications

* Power supplies
* Industrial applications
* Power management circuits
* I/O interfaces Cathode RoHS SMC Bi-directional Uni-directional Anode halogen-Free 4. Ordering information Type number 5.0SMDJxxxXX Package name SMC Orderable part number Packing method
