5.0SMDJ12A - 5000W Transient Voltage Suppressor

WeEn

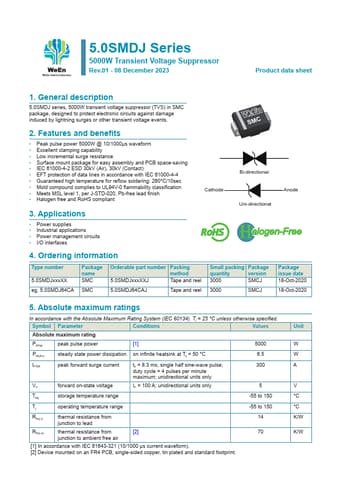

5.0SMDJ12A Datasheet Preview — Preview of 5.0SMDJ12A PDF

Datasheet Details

Part number	5.0SMDJ12A
Manufacturer	WeEn
File Size	500.25 KB
Description	5000W Transient Voltage Suppressor
Datasheet	5.0SMDJ12A-WeEn.pdf

5.0SMDJ12A Product details

Description

5.0SMDJ series, 5000W transient voltage suppressor (TVS) in SMC package, designed to protect electronic circuits against damage induced by lightning surges or other transient voltage events.

Features

Peak pulse power 5000W @ 10/1000μs waveform.
Excellent clamping capability.
Low incremental surge resistance.
Surface mount package for easy assembly and PCB space-saving.
IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact).
EFT protection of data lines in accordance with IEC 61000-4-4.
Guaranteed high temperature for reflow soldering: 260°C/10sec.
Mold compound complies to UL94V-0 flammability classification.
Meets MSL l.
