BT136-800E Datasheet - WeEn

4Q Triac

BT136-800E Features

* Direct triggering from low power drivers and logic ICs

* High blocking voltage capability

* Low holding current for low current loads and lowest EMI at commutation

* Planar passivated for voltage ruggedness and reliability

* Sensitive gate

* Triggeri

BT136-800E General Description

Planar passivated sensitive gate four quadrant triac in a SOT78 plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate "series E" triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and ot.

BT136-800E Datasheet (236.20 KB)

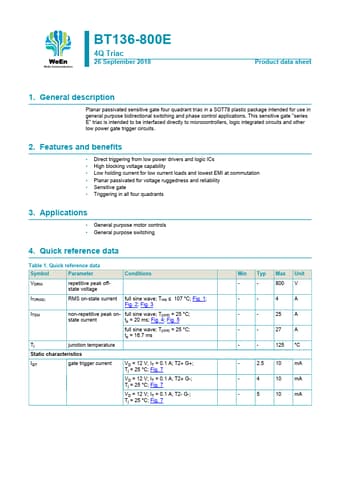

BT136-800E Datasheet Preview — Preview of BT136-800E PDF

Datasheet Details

Part number:

BT136-800E

Manufacturer:

WeEn

File Size:

236.20 KB

Description:

4q triac.
