BT136S-800E Datasheet - WeEn

4Q Triac

BT136S-800E Features

* Direct triggering from low power drivers and logic ICs

* High blocking voltage capability

* Low holding current for low current loads and lowest EMI at commutation

* Planar passivated for voltage ruggedness and reliability

* Sensitive gate

* Surface

BT136S-800E General Description

Planar passivated sensitive gate four quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional switching and phase control applications. This sensitive gate "series E" triac is intended to be interfaced directly to microcontrollers, logic .

BT136S-800E Datasheet (253.36 KB)

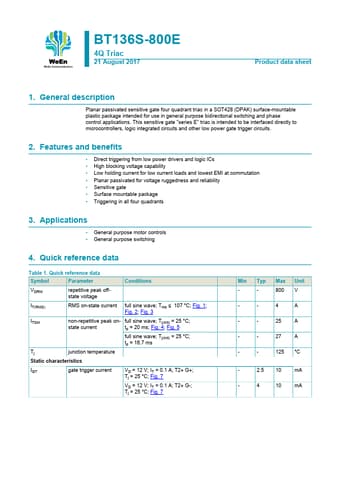

BT136S-800E Datasheet Preview — Preview of BT136S-800E PDF

Datasheet Details

Part number:

BT136S-800E

Manufacturer:

WeEn

File Size:

253.36 KB

Description:

4q triac.
