BT136S-800F - 4Q Triac

Product Overview

WeEn

📥 Download Datasheet

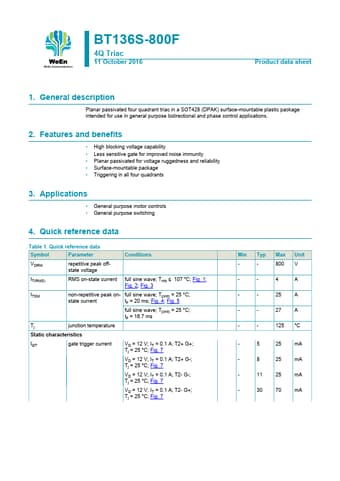

BT136S-800F 4Q Triac by WeEn - Datasheet Preview — Datasheet preview – BT136S-800F

Datasheet Details

Part number	BT136S-800F
Manufacturer	WeEn
File Size	301.35 KB
Description	4Q Triac
Datasheet	BT136S-800F Datasheet
Additional preview pages of the BT136S-800F datasheet.

Product details

Description

Planar passivated four quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in general purpose bidirectional and phase control applications.

Features

High blocking voltage capability.
Less sensitive gate for improved noise immunity.
Planar passivated for voltage ruggedness and reliability.
Surface-mountable package.
Triggering in all four quadrants 3.
