BTA204S-600F Datasheet - WeEn

3Q Hi-Com Triac

BTA204S-600F Features

* 3Q technology for improved noise immunity

* Direct triggering from low power drivers and logic ICs

* High blocking voltage capability

* High commutation capability

* Intermediate sensitivity for maximum noise immunity and logic level triggering

* Pla

BTA204S-600F General Description

Planar passivated high commutation three quadrant triac in a SOT428 (DPAK) surface-mountable plastic package. This "series F" triac balances the requirements of commutation performance and gate sensitivity and is intended for interfacing with low power drivers and logic ICs including microcontroller.

BTA204S-600F Datasheet (255.09 KB)

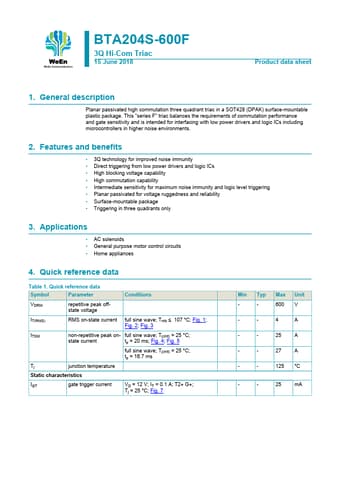

Preview of BTA204S-600F PDF

Datasheet Details

Part number:

BTA204S-600F

Manufacturer:

WeEn

File Size:

255.09 KB

Description:

3q hi-com triac.
