BTA204S-1000C - 3Q Hi-Com Triac

NXP

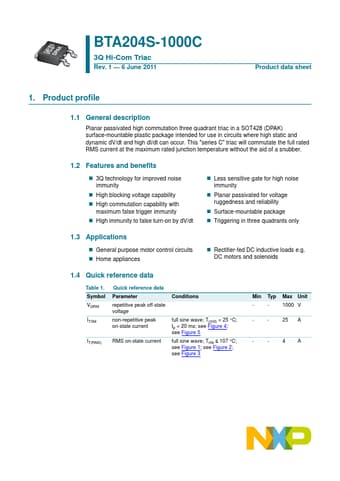

BTA204S-1000C Datasheet Preview — Preview of BTA204S-1000C PDF

Datasheet Details

Part number	BTA204S-1000C
Manufacturer	NXP ↗
File Size	266.19 KB
Description	3Q Hi-Com Triac
Datasheet	BTA204S-1000C-NXP.pdf

BTA204S-1000C Product details

Description

Planar passivated high commutation three quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur.

Features

3Q technology for improved noise immunity.
High blocking voltage capability.
High commutation capability with maximum false trigger immunity.
High immunity to false turn-on by dV/dt.
Less sensitive gate for high noise immunity.
Planar passivated for voltage ruggedness and reliability.
Surface-mountable package.
Triggering in three quadrants only 1.3.
