BTA204S-600E - 3Q Hi-Com Triac

WeEn

📥 Download Datasheet

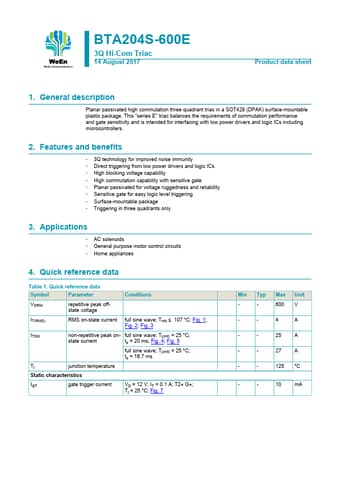

BTA204S-600E Datasheet Preview — Preview of BTA204S-600E PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BTA204S-600E
Manufacturer	WeEn
File Size	255.82 KB
Description	3Q Hi-Com Triac
Datasheet	BTA204S-600E-WeEn.pdf

BTA204S-600E Product details

Description

Planar passivated high commutation three quadrant triac in a SOT428 (DPAK) surface-mountable plastic package.

Features

3Q technology for improved noise immunity.
Direct triggering from low power drivers and logic ICs.
High blocking voltage capability.
High commutation capability with sensitive gate.
Planar passivated for voltage ruggedness and reliability.
Sensitive gate for easy logic level triggering.
Surface-mountable package.
Triggering in three quadrants only 3.
