BTA204S-600C

3Q Hi-Com Triac

BTA204S-600C Features

* 3Q technology for improved noise immunity

* High blocking voltage capability

* High commutation capability with maximum false trigger immunity

* High immunity to false turn-on by dV/dt

* Less sensitive gate for high noise immunity

* Planar passivated

BTA204S-600C General Description

Planar passivated high commutation three quadrant triac in a SOT428 (DPAK) surface-mountable plastic package intended for use in circuits where high static and dynamic dV/dt and high dI/dt can occur. This "series C" triac will commutate the full rated RMS current at the maximum rated junction temper.

BTA204S-600C Datasheet (254.78 KB)

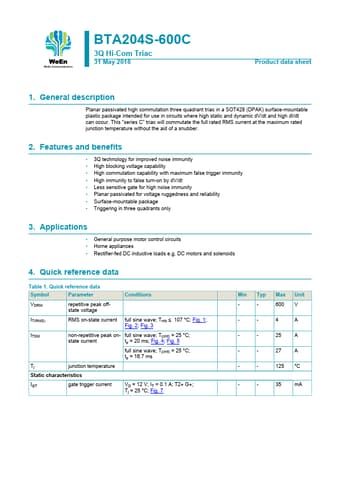

Preview of BTA204S-600C PDF

Datasheet Details

Part number:

BTA204S-600C

Manufacturer:

WeEn

File Size:

254.78 KB

Description:

3q hi-com triac.
