ESDHD05BF, ESDHD03BF Datasheet - WeEn

ESDHD05BF, ESDHD03BF, ESD Protection Diodes

ESDHDxxBF Series ESD Protection Diodes Rev.02 - 13 September 2022 Product data sheet 1.General .
The ESDHDxxBF series are designed to protect voltage sensitive components which are connected to data and transmission lines from overvoltage caused b.

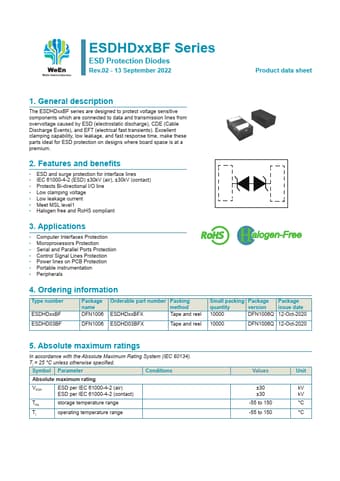

 datasheet Preview Page 1 from Datasheet4u.com

ESDHD03BF-WeEn.pdf

This datasheet PDF includes multiple part numbers: ESDHD05BF, ESDHD03BF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ESDHD05BF, ESDHD03BF

Manufacturer:

WeEn

File Size:

319.88 KB

Description:

ESD Protection Diodes

Note:

This datasheet PDF includes multiple part numbers: ESDHD05BF, ESDHD03BF.
Please refer to the document for exact specifications by model.

Features

* ESD and surge protection for interface lines
* IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
* Protects Bi-directional I/O line
* Low clamping voltage
* Low leakage current
* Meet MSL level1
* Halogen free and RoHS compliant 3. Applicatio

Applications

* Computer Interfaces Protection
* Microprocessors Protection
* Serial and Parallel Ports Protection
* Control Signal Lines Protection
* Power lines on PCB Protection
* Portable instrumentation
* Peripherals h RoHS alogen-Free 4. Ordering in
